Pulse Transformers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

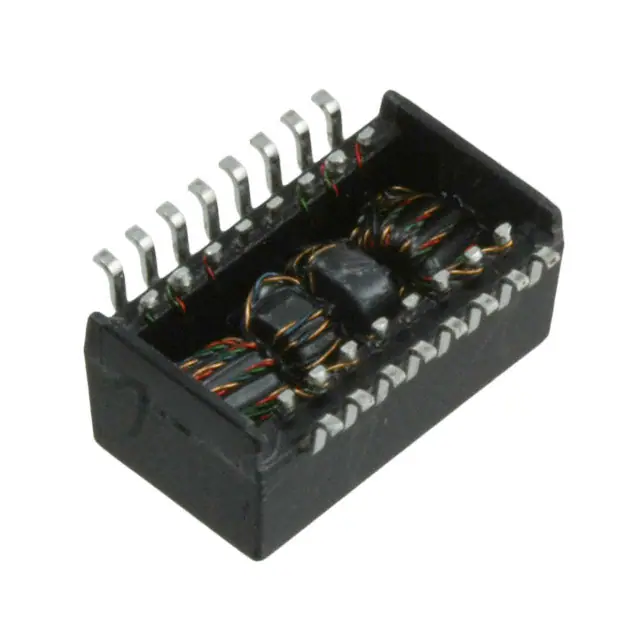

HX1260NLTXFRMR MODULE 1PORT 1:1 10/100 Pulse Electronics |
2,725 |
|
Datasheet |
Star Magnetics™ | Tape & Reel (TR) | Active | LAN 10/100 Base-T | 350µH, 400µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.235" (5.97mm) | -40°C ~ 85°C | - | - |
|
PA1528NLTXFRMR 15V 27W 28.9UH POE EP13 Pulse Electronics |
884 |
|
Datasheet |
EP13 | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | 28.9µH | - | 1:0.470:0.294 | Surface Mount | 0.551" L x 0.516" W (14.00mm x 13.11mm) | 0.485" (12.32mm) | -40°C ~ 130°C | - | - |
|
PH9185.011NLTTRANSFORMER 750UH 1:1 SMD Pulse Electronics |
6,383 |
|
Datasheet |
PH9185 | Tape & Reel (TR) | Active | - | - | - | - | Surface Mount | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.492" (12.50mm) | - | - | - |
|
|
PH9185.038NLTTRANSFORMER 310UH 3:8 SMD Pulse Electronics |
974 |
|
Datasheet |
PH9185 | Tape & Reel (TR) | Active | - | - | - | - | Surface Mount | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.492" (12.50mm) | - | - | - |
|

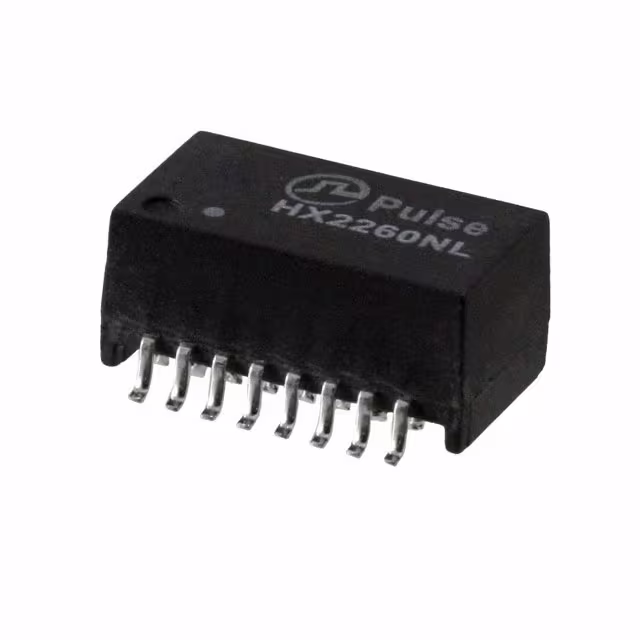

HX2260NLTXFRMR MODUL 1PORT POE 1:1 10/100 Pulse Electronics |
1,265 |
|
Datasheet |
Star Magnetics™ | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | - | - | 1:1 | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.245" (6.22mm) | -40°C ~ 85°C | - | - |
|
|
PH9185.021NLTTRANSFORMER 880UH 2:1 SMD Pulse Electronics |
436 |
|
Datasheet |
PH9185 | Tape & Reel (TR) | Active | - | - | - | - | Surface Mount | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.492" (12.50mm) | - | - | - |
|
PE-65726NLTTRANSFORMER 2000VRMS 200UH SMD Pulse Electronics |
1,476 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | 200µH | - | 1CT:1CT | Surface Mount | 0.500" L x 0.285" W (12.70mm x 7.24mm) | 0.210" (5.33mm) | 0°C ~ 70°C | - | - |
|
H1260NLMODULE XFRMR FST ETHR LAN 16SOIC Pulse Electronics |
380 |
|
Datasheet |
- | Tube | Active | LAN | - | - | 1CT:1CT | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.240" (6.10mm) | 0°C ~ 70°C | - | - |
|

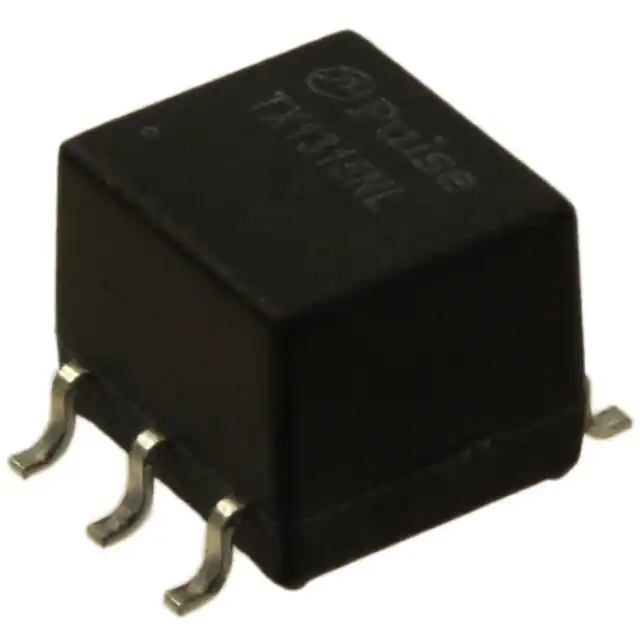

TX1315NLTRANSFORMER 1CT:1CT 1.2MH SMD Pulse Electronics |
538 |
|
Datasheet |
- | Tube | Active | T1/E1 (Single) | 1.2mH | - | 1CT:1CT | Surface Mount | 0.300" L x 0.276" W (7.62mm x 7.00mm) | 0.250" (6.35mm) | -40°C ~ 85°C | - | - |
|
HX1198FNLPULSE XFMR 1CT:1CT TX 1CT:1CT RX Pulse Electronics |
1,269 |
|
Datasheet |
- | Bulk | Active | LAN 10/100 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500" L x 0.358" W (12.70mm x 9.09mm) | 0.236" (5.99mm) | -40°C ~ 85°C | - | - |
