Pulse Transformers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PE-65728NLTTRANSFORMER 2000VRMS 100UH SMD Pulse Electronics |
4,657 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | 100µH | 1.8VµS | 1:1 | Surface Mount | 0.500" L x 0.285" W (12.70mm x 7.24mm) | 0.210" (5.33mm) | 0°C ~ 70°C | - | - |
|
HM2108NLTMDL, SIN, XFMR-CMC, 1:1, 4.3KV, Pulse Electronics |
119 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | 135µH | - | 1:1 | Surface Mount | 0.335" L x 0.524" W (8.50mm x 13.31mm) | 0.226" (5.75mm) | -40°C ~ 125°C | - | - |
|

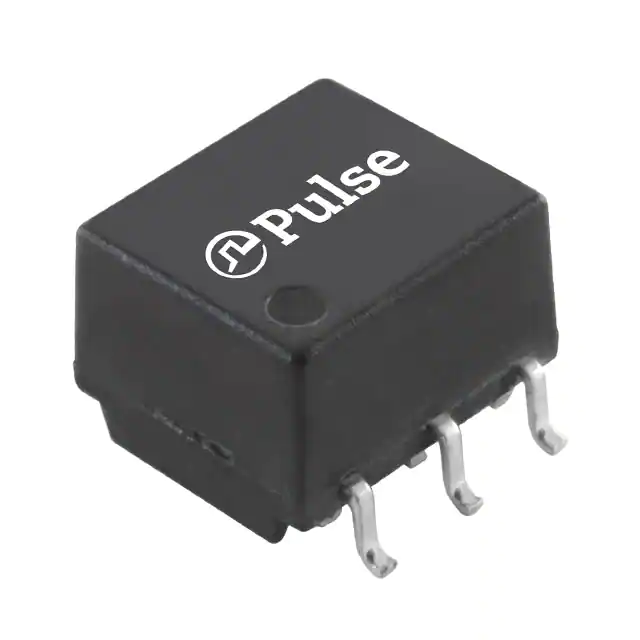

HMU2103NLTMDL, SIN, XFMR-CMC, 1:1, 4.3KV, Pulse Electronics |
1,536 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | 150µH | - | 1:1 | Surface Mount | 0.300" L x 0.265" W (7.62mm x 6.73mm) | 0.225" (5.72mm) | -40°C ~ 125°C | - | - |
|
23Z467SMNLTRANSFORMER 10BASE-T LAN 16SOIC Pulse Electronics |
266 |
|
Datasheet |
- | Tube | Active | Isolation and Data Interface (Encapsulated) | 140µH | - | 1CT:2CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.450" L x 0.265" W (11.43mm x 6.73mm) | 0.215" (5.46mm) | 0°C ~ 70°C | - | - |
|
E2023NLXFRMR LAN ISOL 10BASET 1:2.5 SMD Pulse Electronics |
189 |
|
Datasheet |
- | Tube | Active | Isolation and Data Interface (Encapsulated) | 200µH | - | 1CT:2.5CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.495" L x 0.280" W (12.57mm x 7.11mm) | 0.210" (5.33mm) | 0°C ~ 70°C | - | - |
|

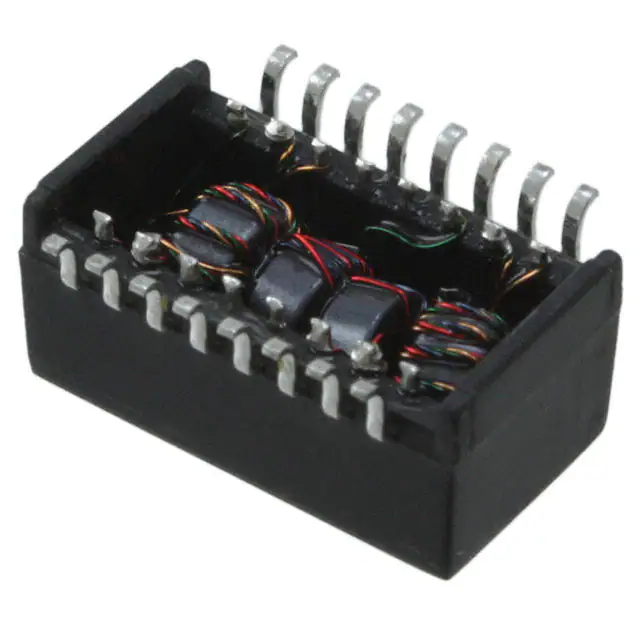

H2260NLXFRMR MODUL 1PORT POE 1:1 10/100 Pulse Electronics |
180 |
|
Datasheet |
Star Magnetics™ | Tube | Active | Isolation and Data Interface (Encapsulated) | - | - | 1:1 | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.240" (6.10mm) | 0°C ~ 70°C | - | - |
|

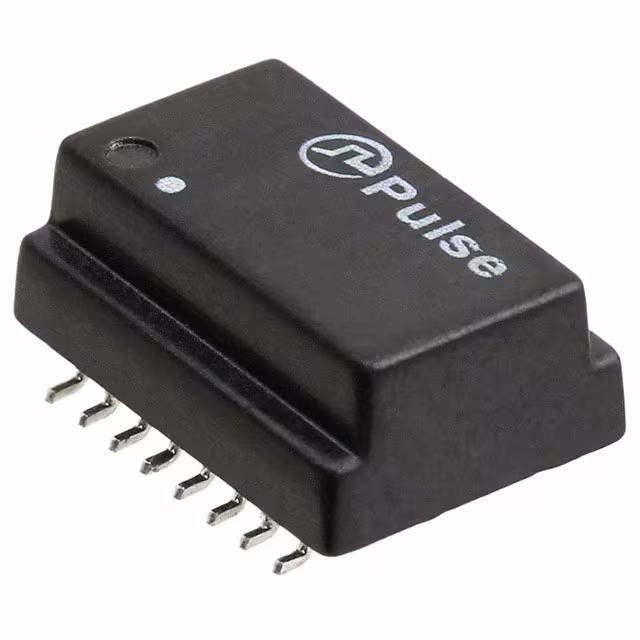

H1197FNLTPULSE XFMR 1CT:1CT TX 1CT:1CT RX Pulse Electronics |
968 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100 Base-T | 1.2mH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500" L x 0.358" W (12.70mm x 9.09mm) | 0.236" (5.99mm) | 0°C ~ 70°C | - | - |
|
|
HMU2103NLXFMR CMC MODULE AECQ BATT MNGT Pulse Electronics |
255 |
|
Datasheet |
- | Tube | Active | - | 150µH | - | - | Surface Mount | 0.300" L x 0.365" W (7.62mm x 9.27mm) | 0.225" (5.72mm) | - | - | - |
|
TX1099NLTXFRMR 1CT:1:0.8/1CT:1:0.8 SMD Pulse Electronics |
1,200 |
|
Datasheet |
- | Tape & Reel (TR) | Active | T1/E1 (Dual) | 1.2mH, 1.2mH | - | 1CT:1:0.8, 1CT:1:0.8 | Surface Mount | 0.505" L x 0.280" W (12.83mm x 7.11mm) | 0.245" (6.22mm) | -40°C ~ 85°C | - | - |
|
T1137NLTRANSFORMER TELECOM DUAL T1/E2 Pulse Electronics |
782 |
|
Datasheet |
- | Tube | Active | T1/E1 (Dual) | 1.2mH, 1.2mH | - | 1CT:2.42CT, 1CT:2.42CT | Surface Mount | 0.505" L x 0.280" W (12.83mm x 7.11mm) | 0.245" (6.22mm) | 0°C ~ 70°C | - | - |
