Pulse Transformers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HM2171HLDUAL XFMR CMC 150UH 1:1 4.3KV Pulse Electronics |
355 |
|
Datasheet |
- | Tube | Active | Battery Management | 150µH | - | 1:1 | Surface Mount | 0.583" L x 0.460" W (14.81mm x 11.68mm) | 0.192" (4.88mm) | -40°C ~ 125°C | - | - |
|
T1090NLTXFRMR 1CT:2CT/1CT:2CT 1.2/1.2MH Pulse Electronics |
895 |
|
Datasheet |
- | Tape & Reel (TR) | Active | T1/E1 (Dual) | 1.2mH, 1.2mH | - | 1CT:2CT, 1CT:2CT | Surface Mount | 0.505" L x 0.280" W (12.83mm x 7.11mm) | 0.245" (6.22mm) | -40°C ~ 85°C | - | - |
|

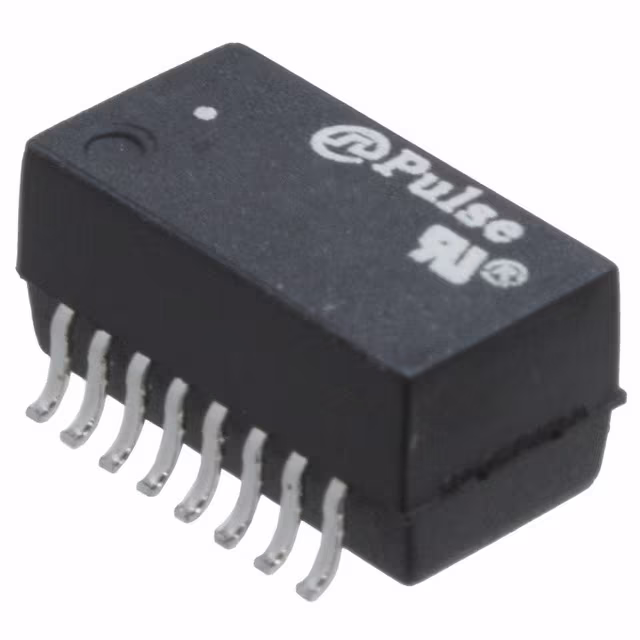

TX1099NLXFRMR 1CT:1:0.8/1CT:1:0.8 SMD Pulse Electronics |
680 |
|
Datasheet |
- | Tube | Active | T1/E1 (Dual) | 1.2mH, 1.2mH | - | 1CT:1:0.8, 1CT:1:0.8 | Surface Mount | 0.505" L x 0.280" W (12.83mm x 7.11mm) | 0.245" (6.22mm) | -40°C ~ 85°C | - | - |
|
|
PE-65861NLTXFRMR 1CT:2CT/1CT:2CT 1.2/1.2MH Pulse Electronics |
242 |
|
Datasheet |
- | Tape & Reel (TR) | Active | T1/E1 (Dual) | 1.2mH, 1.2mH | - | 1CT:2CT, 1CT:2CT | Surface Mount | 0.505" L x 0.280" W (12.83mm x 7.11mm) | 0.245" (6.22mm) | 0°C ~ 70°C | - | - |
|
T1124NLXFRMR T1/E1/CEPT/ISDN-PRI 1:2CT Pulse Electronics |
283 |
|
Datasheet |
- | Tube | Active | T1/E1 (Quad) | 1.2mH, 1.2mH | - | 1:2CT Transmitter, 1CT:2 Receiver | Surface Mount | 1.125" L x 0.485" W (28.58mm x 12.32mm) | 0.230" (5.84mm) | 0°C ~ 70°C | - | - |
|
E2023FNLXFRMR LAN ISOL 10BASET 1:2.5 SMD Pulse Electronics |
408 |
|
Datasheet |
- | Tube | Active | Isolation and Data Interface (Encapsulated) | 200µH | - | 1CT:2.5CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.498" L x 0.350" W (12.65mm x 8.89mm) | 0.200" (5.08mm) | 0°C ~ 70°C | - | - |
|

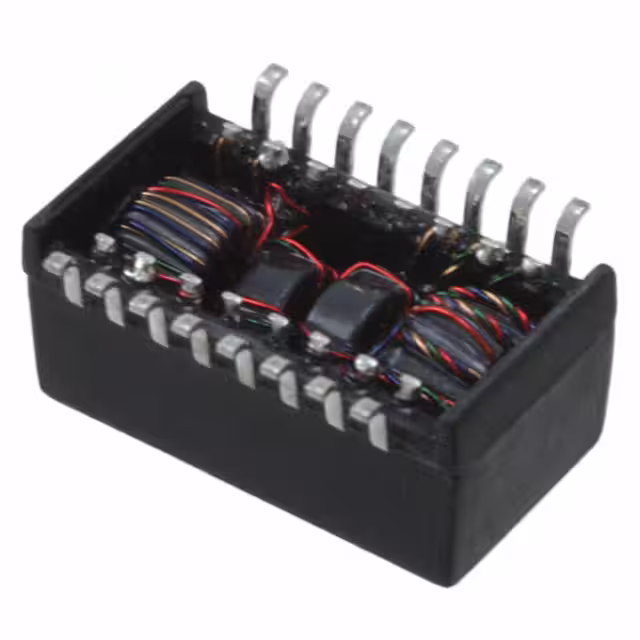

H1100NLXFRMR MAGNETIC 1PORT 2:1 10/100 Pulse Electronics |
415 |
|
Datasheet |
- | Tube | Active | Isolation and Data Interface (Encapsulated) | - | - | 2:1 Transmitter, 1:1 Receiver | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.245" (6.22mm) | 0°C ~ 70°C | - | - |
|
BM6155NLTTRANSFORMER 28UH 1:1:1 3KV SMT Pulse Electronics |
423 |
|
Datasheet |
BM615xNL | Tape & Reel (TR) | Active | - | 28µH | - | 1:1:1 | Surface Mount | 0.417" L x 0.357" W (10.60mm x 9.08mm) | 0.394" (10.00mm) | -40°C ~ 125°C | - | - |
|
EX2024NLXFRMR LAN ISOL 10BASET 1:2.5 SMD Pulse Electronics |
124 |
|
Datasheet |
- | Tube | Active | Isolation and Data Interface (Encapsulated) | 350µH | - | 1CT:2.5CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500" L x 0.285" W (12.70mm x 7.24mm) | 0.210" (5.33mm) | 0°C ~ 70°C | - | - |
|
HDX8004NLMDL,SIN, HDBASET, 60W, SMT Pulse Electronics |
210 |
|
Datasheet |
- | Tube | Active | HDBase-T | 120µH | - | 1:1 | Surface Mount | - | 0.225" (5.72mm) | -40°C ~ 85°C | - | - |
