Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TMCGD6ST1540YSWITCH SNAP ACT SPST-NO 10A 125V C&K |
4,590 |
|
Datasheet |
TM | Bulk | Active | SPST-NO | Off-Mom | 10A (AC), 500mA (DC) | 125 V | 125 V | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 45gf | 9.000gf | 0.600" (15.2mm) | 0.161" (4.1mm) | 0.032" (0.81mm) | 0.075" (1.9mm) | -55°C ~ 150°C |
|
DS2D7BQ3SWITCH SNAP ACTION DPDT 16A 125V C&K |
1,678 |
|
Datasheet |
DS | Bulk | Active | DPDT | On-Mom | 16A (AC) | 125 V | - | Round (Pin Plunger) | Panel Mount, Snap-In | Quick Connect - 0.250" (6.3mm) | - | - | 680gf | - | 0.770" (19.5mm) | - | - | 0.398" (10.1mm) | -40°C ~ 85°C |
|

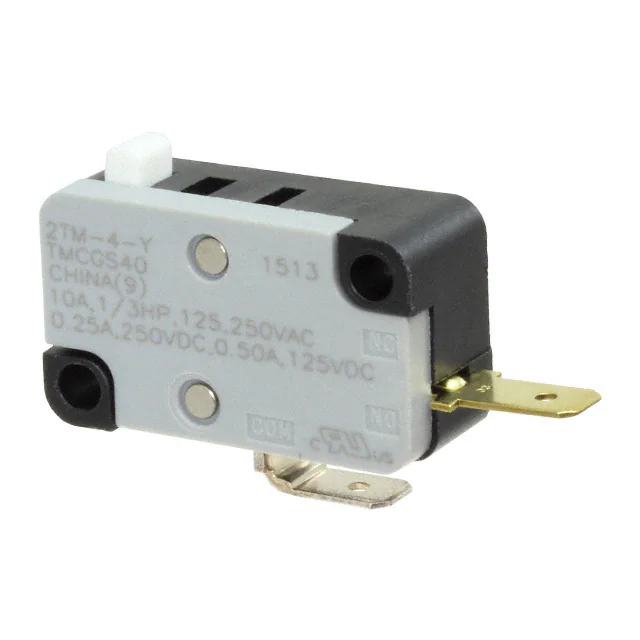

TMCGD6SP0040YSWITCH SNAP ACT SPST-NO 10A 125V C&K |
4,925 |
|
Datasheet |
TM | Bulk | Active | SPST-NO | Off-Mom | 10A (AC), 500mA (DC) | 125 V | 125 V | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 75gf | 28gf | 0.579" (14.7mm) | 0.055" (1.4mm) | 0.013" (0.33mm) | 0.035" (0.9mm) | -55°C ~ 150°C |
|
LCGGM1T20EYESWITCH SNAP ACT SPST-NO 10A 125V C&K |
1,759 |
|
Datasheet |
LC | Bulk | Active | SPST-NO | Off-Mom | 10A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Solder Lug | - | Epoxy Sealed Terminals | 26gf | 3.000gf | 0.340" (8.6mm) | 0.275" (7.0mm) | 0.065" (1.7mm) | 0.053" (1.35mm) | -25°C ~ 85°C |
|
|
TMCGD6SA1010CSWITCH SNAP ACTION SPDT 10A 125V C&K |
1,055 |
|
Datasheet |
TM | Bulk | Active | SPDT | On-Mom | 10A (AC), 500mA (DC) | 125 V | 125 V | Lever, Roller | Chassis Mount | Solder Lug | - | - | 90gf | 28gf | 0.812" (20.6mm) | 0.071" (1.8mm) | 0.013" (0.33mm) | 0.035" (0.9mm) | -55°C ~ 150°C |
|
TFS10ST2040CSWITCH SNAP ACTION SPDT 10A 125V C&K |
3,494 |
|
Datasheet |
TFS | Box | Active | SPDT | On-Mom | 10A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | - | 90gf | 10gf | 0.591" (15.0mm) | 0.200" (5.1mm) | 0.045" (1.1mm) | 0.047" (1.2mm) | -40°C ~ 85°C |
|
|
LCGGF5T25ECSWITCH SNAP ACTION SPDT 1A 125V C&K |
1,214 |
|
Datasheet |
LC | Bulk | Active | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Lever, Straight | Chassis Mount | Solder Lug | - | - | 19gf | 2.000gf | 0.340" (8.6mm) | 0.372" (9.45mm) | 0.090" (2.3mm) | 0.072" (1.83mm) | -25°C ~ 85°C |
|

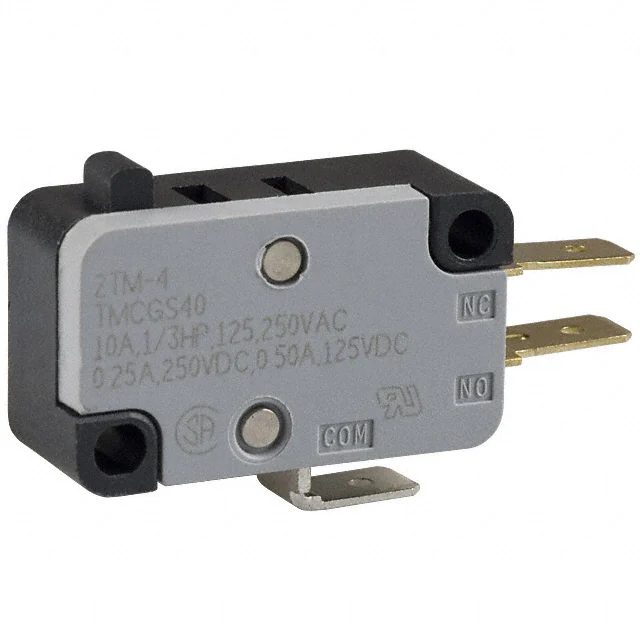

TMCGD6SP0040CSWITCH SNAP ACTION SPDT 10A 125V C&K |
3,138 |
|
Datasheet |
TM | Bulk | Active | SPDT | On-Mom | 10A (AC), 500mA (DC) | 125 V | 125 V | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 75gf | 28gf | 0.579" (14.7mm) | 0.055" (1.4mm) | 0.013" (0.33mm) | 0.035" (0.9mm) | -55°C ~ 150°C |
|
TFECJ6ST264AWSWITCH SNAP ACT SPST-NC 15A 277V C&K |
4,361 |
|
Datasheet |
TF | Bulk | Active | SPST-NC | On-Mom | 15A (AC), 500mA (DC) | 277 V | 125 V | Lever, Straight | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 36gf | 6.000gf | 0.600" (15.2mm) | 0.500" (12.7mm) | 0.100" (2.54mm) | 0.235" (6.0mm) | -40°C ~ 85°C |
|
ASGGF5J04AYSWITCH SNAP ACT SPST-NO 1A 125V C&K |
1,206 |
|
Datasheet |
A | Bulk | Active | SPST-NO | Off-Mom | 1A (AC/DC) | 125 V | 30 V | Overtravel Plunger | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 142gf | 28gf | - | 0.050" (1.27mm) | - | 0.187" (4.75mm) | -55°C ~ 85°C |
