Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

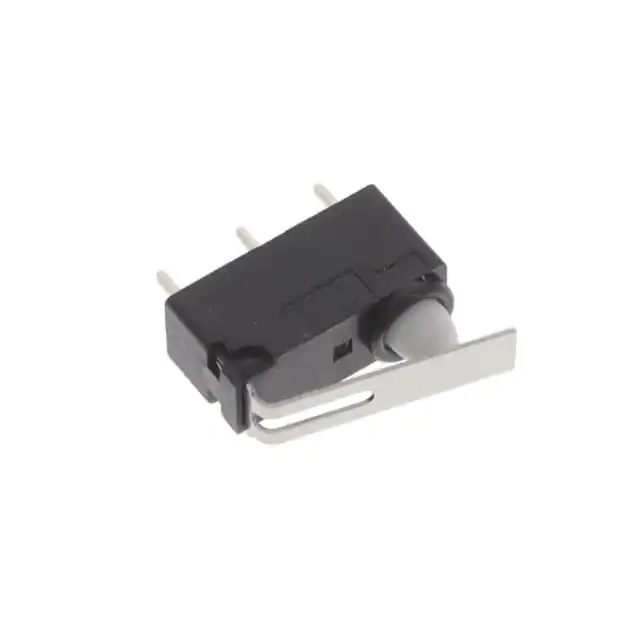

ZMV 03A 150 L14 P C A0SWITCH SNAP ACTION SPDT 3A 125V C&K |
192 |
|
Datasheet |
ZMV | Tray | Active | SPDT | On-Mom | 3A (AC/DC) | 125 V | 24 V | Lever, Straight | Through Hole | PC Pin | IP67 - Dust Tight, Waterproof | - | 220gf | 38gf | 0.450" (11.4mm) | - | 0.020" (0.5mm) | 0.045" (1.1mm) | -40°C ~ 85°C |
|

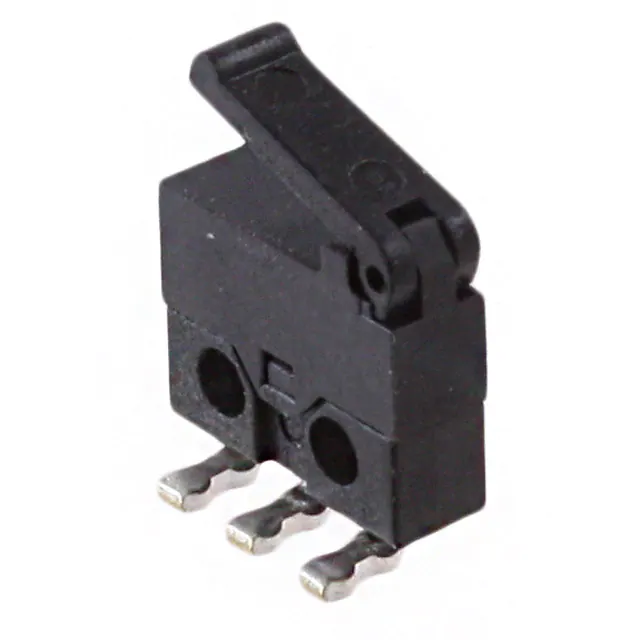

MDS6500AL02RSSWITCH SNAP ACT SPDT 300MA 30V C&K |
4,056 |
|
Datasheet |
MDS | Bulk | Active | SPDT | On-Mom | 300mA (DC) | - | 30 V | Lever, Straight | Through Hole, Right Angle | PC Pin | - | - | 50gf | 3.000gf | 0.264" (6.7mm) | 0.071" (1.8mm) | - | 0.011" (0.3mm) | -25°C ~ 70°C |
|

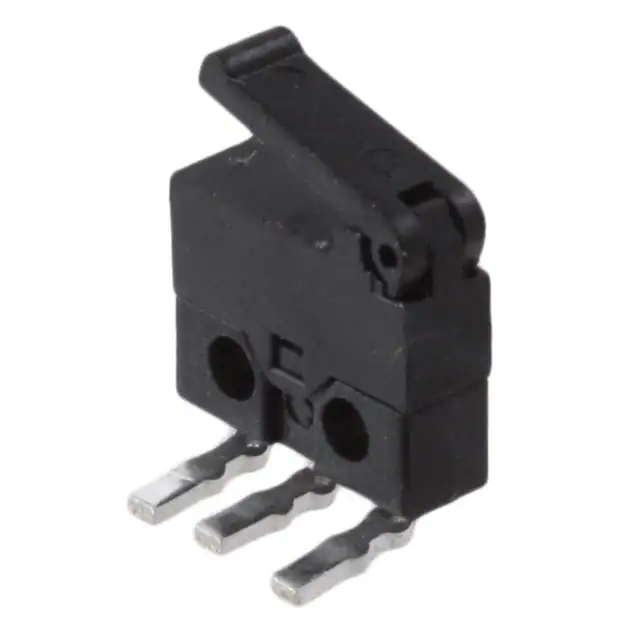

MDS6500AL02RLSWITCH SNAP ACT SPDT 300MA 30V C&K |
1,577 |
|
Datasheet |
MDS | Bulk | Active | SPDT | On-Mom | 300mA (DC) | - | 30 V | Lever, Straight | Through Hole, Right Angle | PC Pin | - | - | 50gf | 3.000gf | 0.264" (6.7mm) | 0.071" (1.8mm) | - | 0.011" (0.3mm) | -25°C ~ 70°C |
|
MDS6500AL02PLSWITCH SNAP ACT SPDT 300MA 30V C&K |
395 |
|
Datasheet |
MDS | Bulk | Active | SPDT | On-Mom | 300mA (DC) | - | 30 V | Lever, Straight | Through Hole | PC Pin | - | - | 50gf | 3.000gf | 0.264" (6.7mm) | 0.071" (1.8mm) | - | 0.011" (0.3mm) | -25°C ~ 70°C |
|
ZMSH00130T11SSCSWITCH SNAP ACT SPDT SLDR C&K |
273 |
|
Datasheet |
ZMS | Bulk | Obsolete | SPDT | On-Mom | 100mA (DC) | - | 12 V | Lever, Simulated Roller | Chassis Mount | Solder Lug | IP65 - Dust Tight, Water Resistant | - | 160gf | 45gf | 0.539" (13.7mm) | 0.188" (4.8mm) | 0.027" (0.7mm) | 0.101" (2.57mm) | -40°C ~ 85°C |
|
TMCGF5ST1040CSWITCH SNAP ACTION SPDT 1A 125V C&K |
2,313 |
|
Datasheet |
TM | Bulk | Active | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 90gf | 28gf | 0.600" (15.2mm) | 0.080" (2.0mm) | 0.013" (0.33mm) | 0.035" (0.9mm) | -55°C ~ 150°C |
|
TF2CHK6SP0010CSWITCH SNAP ACTION SPDT 10A 125V C&K |
276 |
|
Datasheet |
TF2 | Bulk | Active | SPDT | On-Mom | 10A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Solder Lug | - | - | 75gf | 14gf | 0.579" (14.7mm) | 0.068" (1.72mm) | 0.016" (0.4mm) | 0.031" (0.79mm) | -40°C ~ 85°C |
|

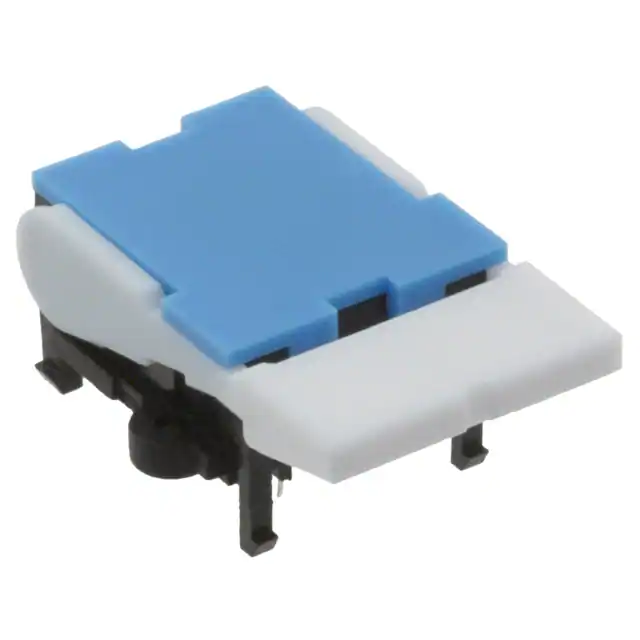

HS-2206-A1 NSSWITCH DETECTOR DPDT 200MA 30V C&K |
2,886 |
|
Datasheet |
HS, COMAX | Tray | Active | DPDT | On-Mom | 200mA (DC) | - | 30 V | Angled Toggle (Detector) | Through Hole | PC Pin | - | - | 50gf | - | 0.312" (7.9mm) | - | - | - | - |
|

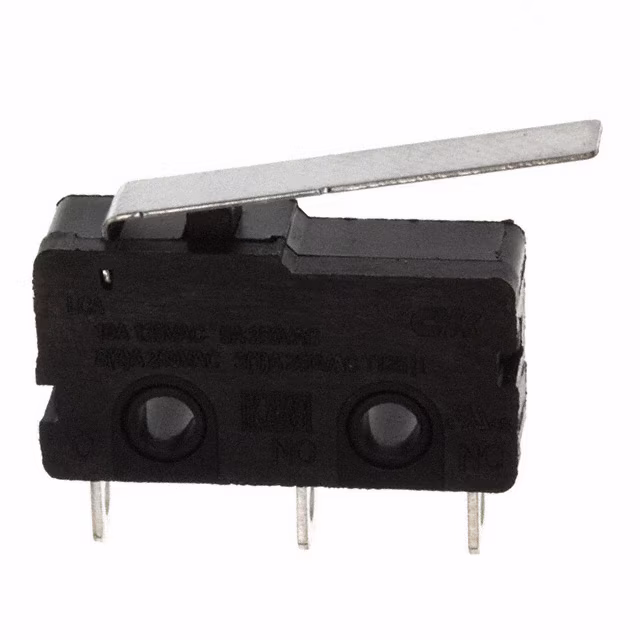

LCA10150T09SCSWITCH SNAP ACTION SPDT 10A 125V C&K |
1,935 |
|
Datasheet |
LCA | Bulk | Active | SPDT | On-Mom | 10A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Solder Lug | - | - | 33gf | 2.000gf | 0.362" (9.2mm) | 0.170" (4.3mm) | 0.070" (1.8mm) | 0.029" (0.74mm) | -40°C ~ 125°C |
|

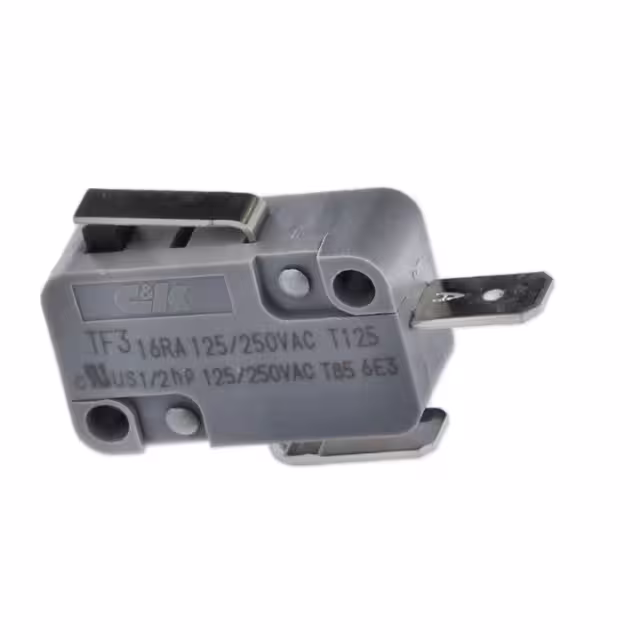

TF316CFT104AYSWITCH SNAP ACT SPST-NO 16A 125V C&K |
474 |
|
Datasheet |
TF3 | Tray | Active | SPST-NO | Off-Mom | 16A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 190gf | - | 0.591" (15.0mm) | 0.094" (2.4mm) | 0.055" (1.4mm) | 0.020" (0.5mm) | -40°C ~ 125°C |
