Pulse Transformers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
H5149NLTPULSE XFMR 1CT:1CT TX 1CT:1CT RX Pulse Electronics |
1,108 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T | - | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.701" L x 0.390" W (17.80mm x 9.91mm) | 0.126" (3.20mm) | 0°C ~ 70°C | - | - |
|
HX1294FNLTPULSE XFMR 1CT:1CT TX 1CT:1CT RX Pulse Electronics |
1,069 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100 Base-T | 325µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.538" L x 0.726" W (13.67mm x 18.44mm) | 0.231" (5.87mm) | -40°C ~ 85°C | - | - |
|

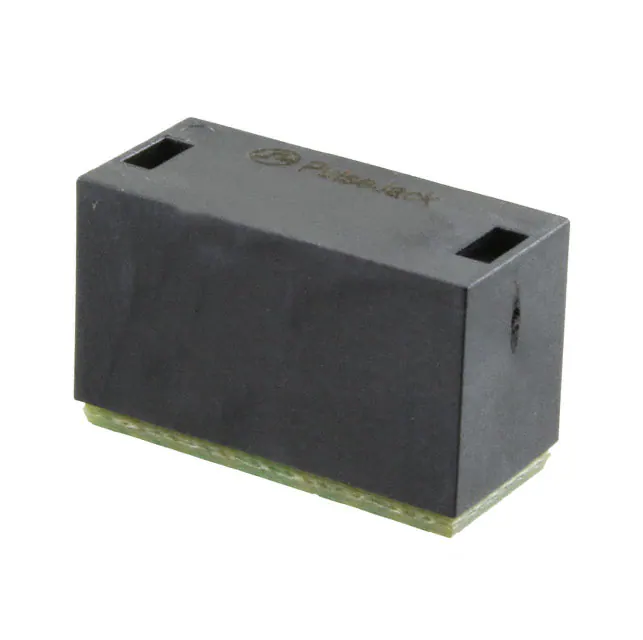

HX5610NLPULSE XFMR 1 CT:1CT TX/RX 350UH Pulse Electronics |
171 |
|
Datasheet |
- | Tube | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.680" L x 0.310" W (17.27mm x 7.87mm) | 0.440" (11.18mm) | -40°C ~ 85°C | - | - |
|
H2006ANLTXFRMR MAGNT MOD 2PORT POE 10/100 Pulse Electronics |
832 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | - | - | 1:1 Transmitter, 1:1 Receiver | Surface Mount | 0.537" L x 0.470" W (13.64mm x 11.94mm) | 0.254" (6.45mm) | 0°C ~ 70°C | - | - |
|

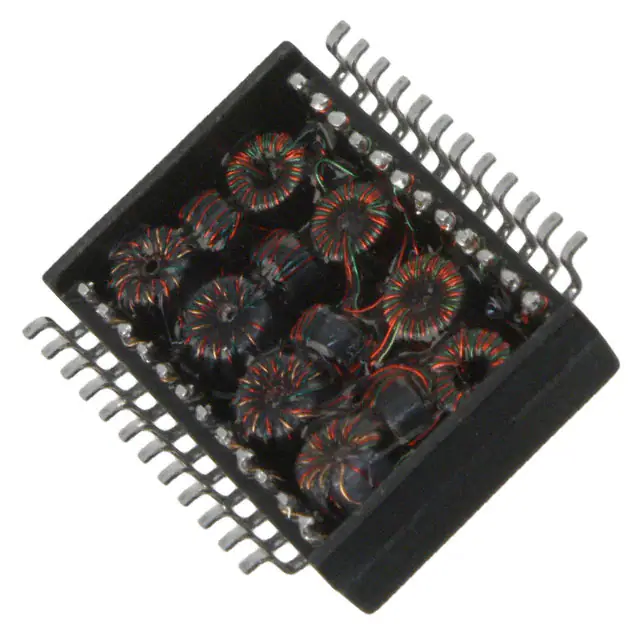

H5015NLTTRANSFORMER MODULE GIGABIT 1PORT Pulse Electronics |
445 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | - | - | 1CT:1CT | Surface Mount | 0.697" L x 0.480" W (17.70mm x 12.20mm) | 0.185" (4.70mm) | 0°C ~ 70°C | - | - |
|
|
HX1294FNLPULSE XFMR 1CT:1CT TX 1CT:1CT RX Pulse Electronics |
489 |
|
Datasheet |
- | Tube | Active | LAN 10/100 Base-T | 325µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.538" L x 0.726" W (13.67mm x 18.44mm) | 0.231" (5.87mm) | -40°C ~ 85°C | - | - |
|
HX6098NLPULSE XFMR 1 CT:1CT TX/RX 120UH Pulse Electronics |
369 |
|
Datasheet |
- | Tube | Active | LAN 10/100/1000 Base-T | 120µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.715" L x 0.480" W (18.16mm x 12.20mm) | 0.260" (6.60mm) | -40°C ~ 85°C | - | - |
|
|
HX6098FNLPULSE XFMR 1 CT:1CT TX/RX 120UH Pulse Electronics |
330 |
|
Datasheet |
- | Tube | Active | LAN 10/100/1000 Base-T | 120µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.715" L x 0.595" W (18.16mm x 15.11mm) | 0.260" (6.60mm) | -40°C ~ 85°C | - | - |
|

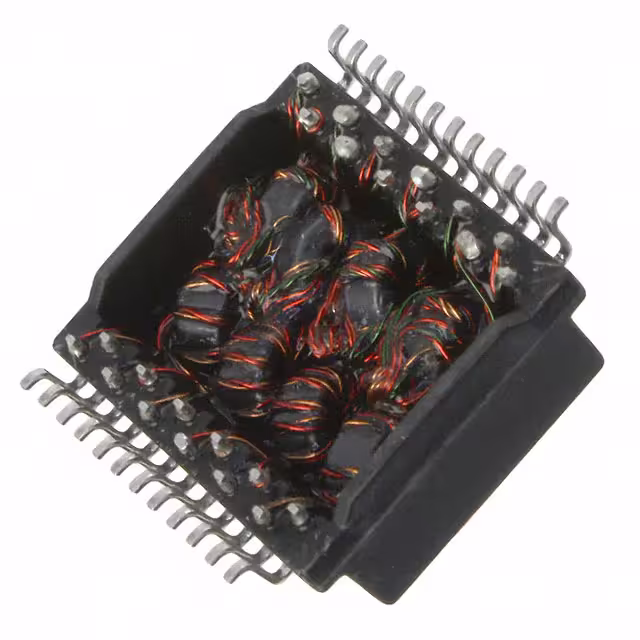

H7008NLTRANSFORMER MODULE 10GBASE-T Pulse Electronics |
244 |
|
Datasheet |
- | Tube | Active | Isolation and Data Interface (Encapsulated) | - | - | - | Surface Mount | 0.539" L x 0.480" W (13.70mm x 12.20mm) | 0.235" (5.97mm) | 0°C ~ 70°C | - | - |
|
HDX8008NLMDL,SIN, HDBASET, 60W, SMT Pulse Electronics |
366 |
|
Datasheet |
- | Tube | Active | HDBase-T | 120µH | - | 1:1 | Surface Mount | - | 0.225" (5.72mm) | -40°C ~ 85°C | - | - |
