Pulse Transformers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
H1270FNLTPULSE XFMR 1CT:1CT TX 1CT:1CT RX Pulse Electronics |
2,292 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10G Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.515" L x 0.574" W (13.08mm x 14.58mm) | 0.145" (3.68mm) | 0°C ~ 70°C | - | - |
|

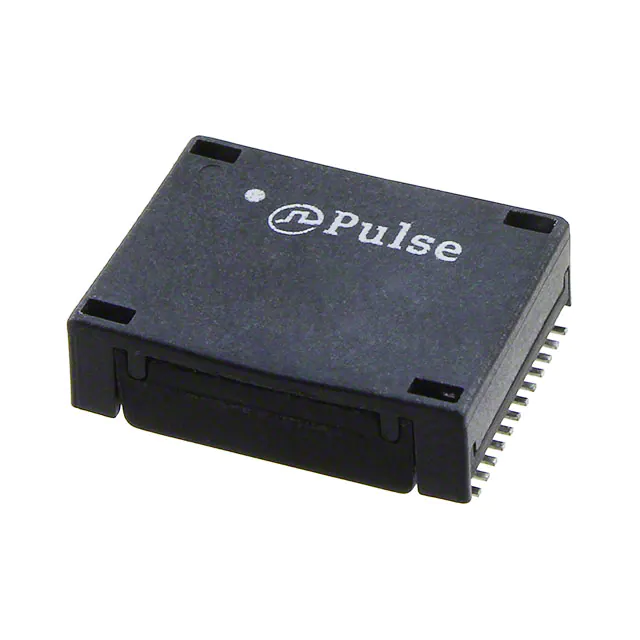

H5008FNLPULSE XFMR 1CT:1CT TX 1CT:1CT RX Pulse Electronics |
1,265 |
|
Datasheet |
- | Tube | Active | LAN 10/100/1000 Base-T, Power over Ethernet (PoE) | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.743" L x 0.538" W (18.87mm x 13.67mm) | 0.231" (5.87mm) | 0°C ~ 70°C | - | - |
|

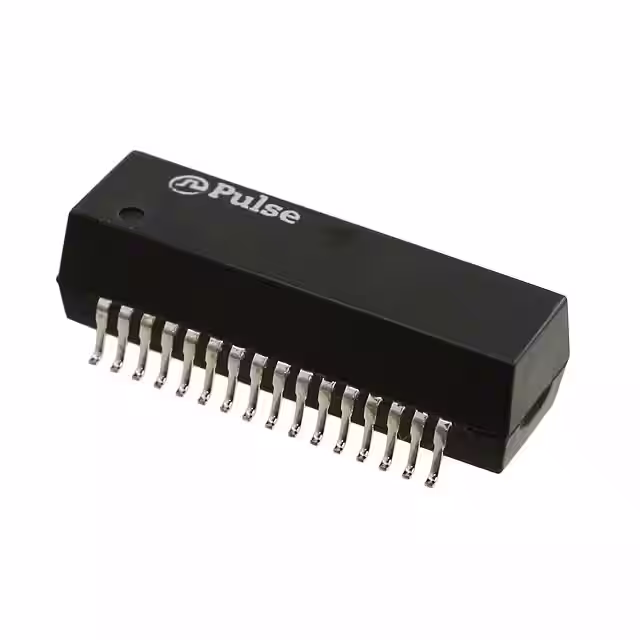

TX1471NLXFRMR OCTAL 1:1 1.2MH SMD Pulse Electronics |
575 |
|
Datasheet |
- | Tube | Active | T1/E1 (Octal) | 1.2mH | - | 1:1 | Surface Mount | 1.000" L x 0.310" W (25.40mm x 7.87mm) | 0.295" (7.49mm) | -40°C ~ 85°C | - | - |
|

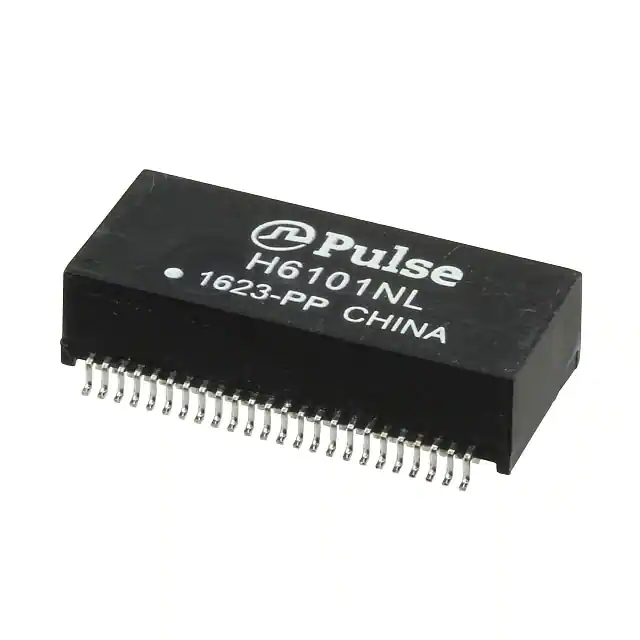

H6101NLTPULSE XFMR 1CT:1CT TX/RX Pulse Electronics |
854 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T | 120µH, 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 1.095" L x 0.480" W (27.81mm x 12.19mm) | 0.285" (7.24mm) | 0°C ~ 70°C | - | - |
|
TX1472NLTXFRMR OCTAL 1:2.4/1:1 1.2MH SMD Pulse Electronics |
458 |
|
Datasheet |
- | Tape & Reel (TR) | Active | T1/E1 (Octal) | 1.2mH | - | 1:2.4, 1:1 | Surface Mount | 1.000" L x 0.310" W (25.40mm x 7.87mm) | 0.295" (7.49mm) | -40°C ~ 85°C | - | - |
|
PE-63388NLXFRMR MOSFET GATE DRIV 1:1.5:1.5 Pulse Electronics |
419 |
|
Datasheet |
- | Tray | Active | Gate Drive | 1.5mH | - | 1:1.5:1.5 | Through Hole | 1.090" L x 0.750" W (27.69mm x 19.05mm) | 1.200" (30.48mm) | 0°C ~ 70°C | - | - |
|

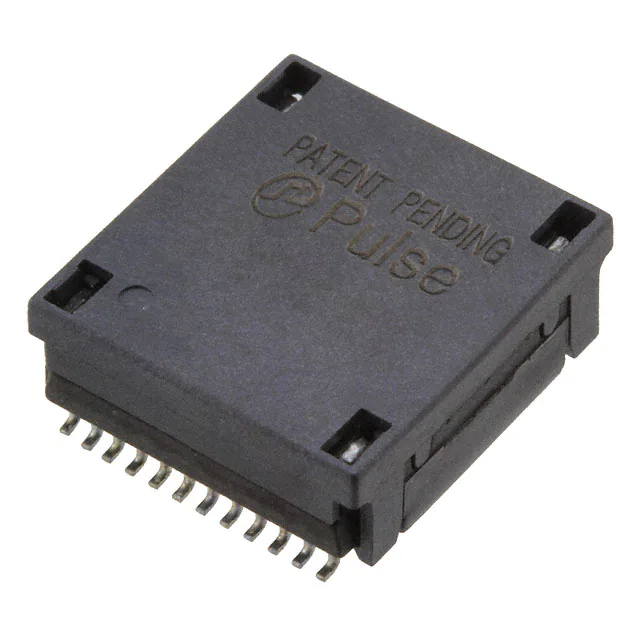

H7019FNLTTRANSFORMER MODULE 10GBASE-T SMD Pulse Electronics |
729 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10G Base-T | 200µH | - | 1:1 | Surface Mount | 0.539" L x 0.591" W (13.70mm x 15.00mm) | 0.230" (5.85mm) | 0°C ~ 70°C | - | - |
|
H7018FNLTMODULE 10GBASE-T 1.5KVRMS SMD Pulse Electronics |
648 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10G Base-T | 120µH | - | 1:1 | Surface Mount | 0.539" L x 0.591" W (13.70mm x 15.00mm) | 0.230" (5.85mm) | 0°C ~ 70°C | - | - |
|
|
T1219NLXFRMR 1CT:2.4CT/1CT:1CT 1.20MH Pulse Electronics |
223 |
|
Datasheet |
- | Tube | Active | T1/E1 (Dual) | 1.2mH | - | 1CT:2.4CT, 1CT:1CT | Surface Mount | 0.675" L x 0.456" W (17.15mm x 11.58mm) | 0.340" (8.64mm) | -40°C ~ 85°C | - | - |
|
HDX8005NLMDL,SIN, HDBASET, 100W, SMT Pulse Electronics |
195 |
|
Datasheet |
- | Tube | Active | HDBase-T | 120µH | - | 1:1 | Surface Mount | - | 0.225" (5.72mm) | -40°C ~ 85°C | - | - |
