Pulse Transformers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

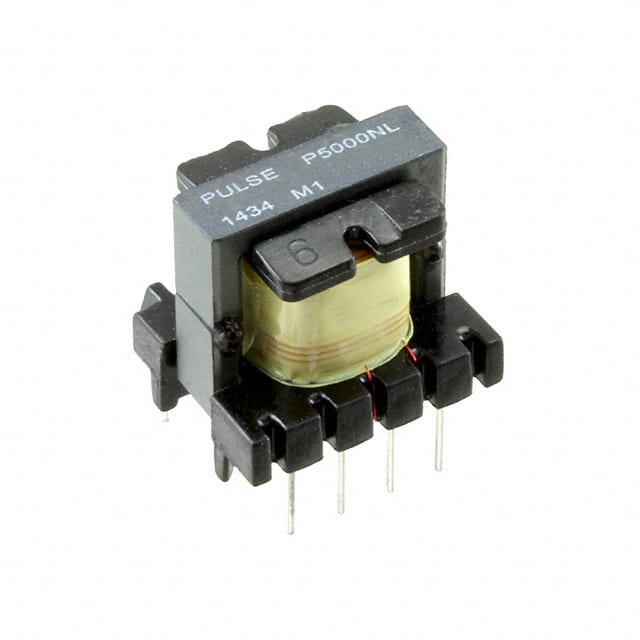

P5000NLPULSE XFMR 1:0.07:0.07 Pulse Electronics |
102 |
|
Datasheet |
- | Tray | Active | - | - | - | 1:0.07:0.07 | Through Hole | 0.717" L x 0.630" W (18.20mm x 16.00mm) | 0.697" (17.70mm) | -30°C ~ 110°C | - | - |
|
PH9384.083NLTXFMR GATE-DR 8CT:3CT SM NPB Pulse Electronics |
154 |
|
Datasheet |
PH9384 | Tape & Reel (TR) | Active | - | - | - | - | Surface Mount | 0.492" L x 0.362" W (12.50mm x 9.20mm) | 0.299" (7.60mm) | - | - | - |
|
PM2185.034NLTXFMR GATE-DR 3T:4CT SMT NPB Pulse Electronics |
270 |
|
Datasheet |
PM2185.XXXNL | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | 680µH | 27VµS | 3CT:4CT | Surface Mount | 0.362" L x 0.323" W (9.20mm x 8.20mm) | 0.299" (7.60mm) | -40°C ~ 125°C | - | - |
|
PA2466NLPULSE XFMR 37UH Pulse Electronics |
2,205 |
|
Datasheet |
- | Tray | Active | - | 37µH | - | - | Surface Mount | 0.551" L x 0.516" W (14.00mm x 13.11mm) | 0.485" (12.32mm) | -40°C ~ 130°C | - | - |
|
|
PH9384.035NLTXFMR GATE-DR 3CT:5CT SM NPB Pulse Electronics |
264 |
|
Datasheet |
PH9384 | Tape & Reel (TR) | Active | - | - | - | - | Surface Mount | 0.492" L x 0.362" W (12.50mm x 9.20mm) | 0.299" (7.60mm) | - | - | - |
|
PH9572.122NLTGDT, FUNCTIONAL, EP7, SMT Pulse Electronics |
1,295 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Gate Drive | 1mH | 42.4VµS | - | Surface Mount | 0.402" L x 0.295" W (10.20mm x 7.50mm) | 0.433" (11.00mm) | -40°C ~ 125°C | - | - |
|
PM2155.045NLTXFMR PUSH-PULL SIDE CAR S NPB Pulse Electronics |
886 |
|
Datasheet |
PM2155.XXXNLT | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | 3.2mH | 109VµS | 4CT:5CT | Surface Mount | 0.630" L x 0.591" W (16.00mm x 15.00mm) | 0.295" (7.50mm) | -40°C ~ 125°C | - | - |
|
TX1188NLXFRMR 1CT:2CT/1CT:2CT 1.2/1.2MH Pulse Electronics |
1,360 |
|
Datasheet |
- | Tube | Active | T1/E1 (Dual) | 1.2mH, 1.2mH | - | 1CT:2CT, 1CT:2CT | Surface Mount | 0.505" L x 0.280" W (12.83mm x 7.11mm) | 0.245" (6.22mm) | -40°C ~ 85°C | - | - |
|
PE-68678NLTXFRMR 1CT:1CT/1CT:2CT 1.2/1.2MH Pulse Electronics |
1,252 |
|
Datasheet |
- | Tape & Reel (TR) | Active | T1/E1 (Dual) | 1.2mH, 1.2mH | - | 1CT:1CT, 1CT:2CT | Surface Mount | 0.505" L x 0.280" W (12.83mm x 7.11mm) | 0.245" (6.22mm) | 0°C ~ 70°C | - | - |
|
|
PE-65861NLTRANSFORMER TELECOM DUAL T1/E2 Pulse Electronics |
1,218 |
|
Datasheet |
- | Tube | Active | T1/E1 (Dual) | 1.2mH, 1.2mH | - | 1CT:2CT, 1CT:2CT | Surface Mount | 0.505" L x 0.280" W (12.83mm x 7.11mm) | 0.245" (6.22mm) | 0°C ~ 70°C | - | - |
