Pulse Transformers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HM2146NLTXFMR SGL 1CT:1CT 150UH 3KV Pulse Electronics |
900 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | 150µH | - | 1:1 | Surface Mount | 0.478" L x 0.354" W (12.15mm x 9.00mm) | 0.126" (3.20mm) | -40°C ~ 125°C | - | - |
|

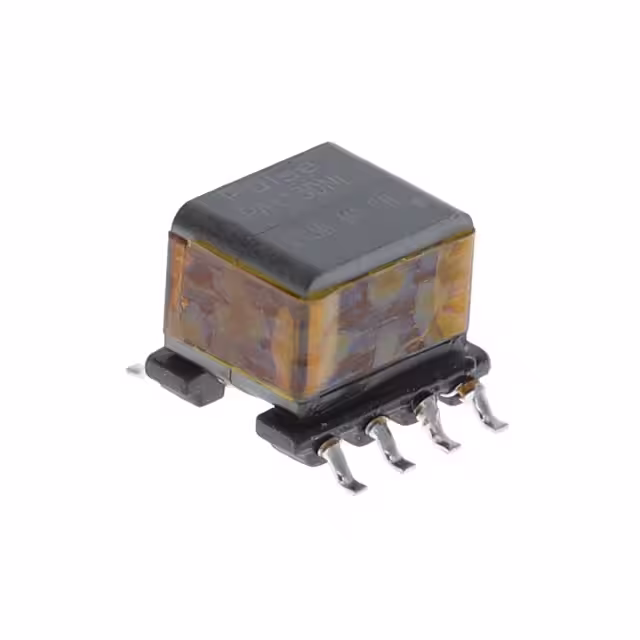

PA1130NLTXFRMR 3.3V 3W 500UH POE EP7 SMD Pulse Electronics |
340 |
|
Datasheet |
EP7 | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | 500µH | - | 1:0.083:0.208 | Surface Mount | 0.420" L x 0.525" W (10.67mm x 13.34mm) | 0.365" (9.27mm) | -40°C ~ 125°C | - | - |
|
PA1283NLTXFRMR 5V 7W 155UH POE EP10 SMD Pulse Electronics |
925 |
|
Datasheet |
EP10 | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | 155µH | - | 1:0.273:0.682 | Surface Mount | 0.515" L x 0.600" W (13.08mm x 15.24mm) | 0.451" (11.45mm) | -40°C ~ 125°C | - | - |
|
|
PA1282NLTXFRMR 3.3V 7W 155UH POE EP10 SMD Pulse Electronics |
1,814 |
|
Datasheet |
EP10 | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | 155µH | - | 1:0.182:0.682 | Surface Mount | 0.515" L x 0.600" W (13.08mm x 15.24mm) | 0.451" (11.45mm) | -40°C ~ 125°C | - | - |
|

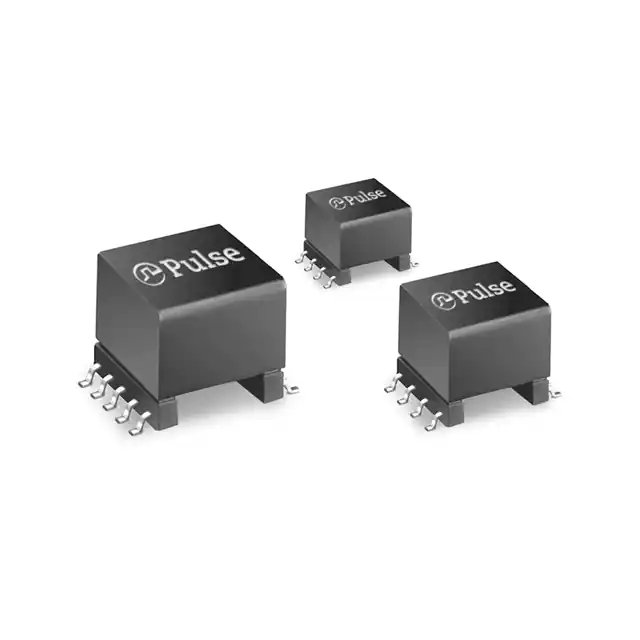

PA1137NLXFMR FLYBACK EP13 SMT Pulse Electronics |
340 |
|
Datasheet |
PA1137NL | Tray | Active | Power over Ethernet (PoE) | 126µH | - | 1:0.125:0.208 | Surface Mount | 0.551" L x 0.516" W (14.00mm x 13.11mm) | 0.485" (12.32mm) | -40°C ~ 130°C | - | - |
|
PH9185.083NLTTRANSFORMER 560UH 8:3 SMD Pulse Electronics |
944 |
|
Datasheet |
PH9185 | Tape & Reel (TR) | Active | - | - | - | - | Surface Mount | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.492" (12.50mm) | - | - | - |
|
ST7010QNLPULSE XFMR 1CT:1.414CT 1CT:1CT Pulse Electronics |
822 |
|
Datasheet |
- | Tube | Active | LAN 10G Base-T | 18µH, 60µH, 80µH, 175µH | - | 1CT:1.414CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.455" L x 0.275" W (11.56mm x 6.99mm) | 0.225" (5.72mm) | 0°C ~ 70°C | - | - |
|

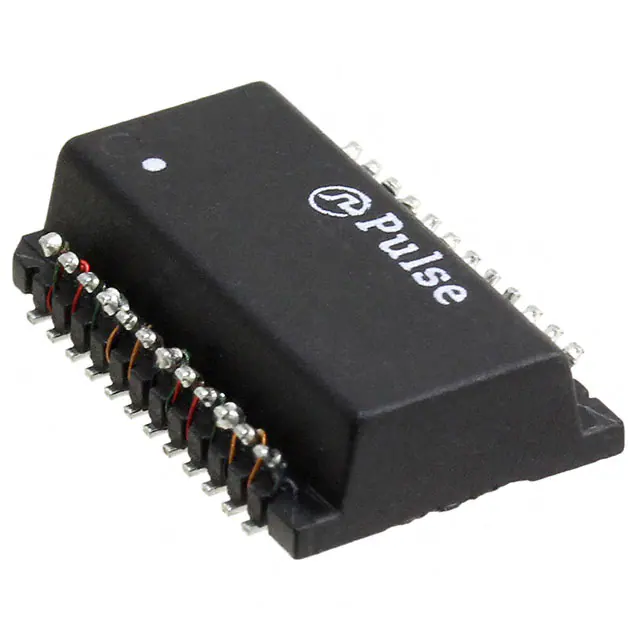

H5084FNLPULSE XFMR 1CT:1CT TX 1CT:1CT RX Pulse Electronics |
2,814 |
|
Datasheet |
- | Tube | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.600" L x 0.385" W (15.24mm x 9.78mm) | 0.163" (4.14mm) | 0°C ~ 70°C | - | - |
|
HM1225NLPULSE XFMR 1CT:1CT TX 1CT:1CT RX Pulse Electronics |
270 |
|
Datasheet |
- | Tube | Active | LAN 10/100 Base-T | 200µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.235" (5.97mm) | -40°C ~ 95°C | - | - |
|
|
HM2171HLTDUAL XFMR CMC 150UH 1:1 4.3KV Pulse Electronics |
950 |
|
- |
- | Tape & Reel (TR) | Active | Battery Management | 150µH | - | 1:1 | Surface Mount | 0.583" L x 0.460" W (14.81mm x 11.68mm) | 0.192" (4.88mm) | -40°C ~ 125°C | - | - |
