Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

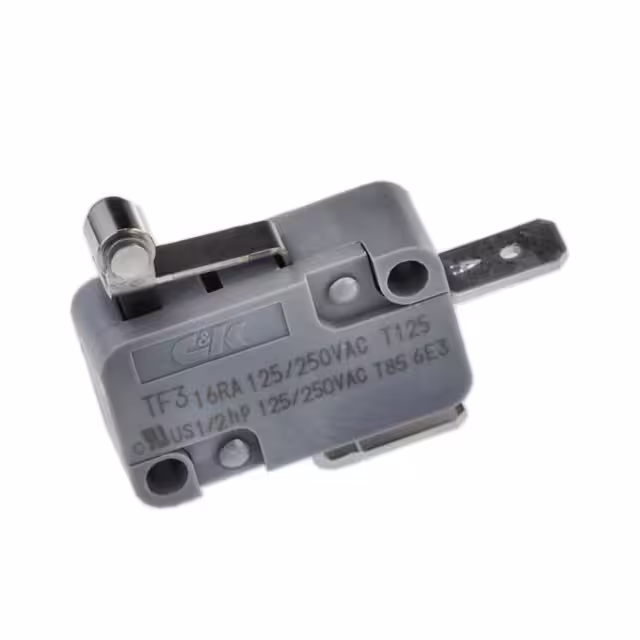

TF316CFA104AYSWITCH SNAP ACT SPST-NO 16A 125V C&K |
392 |
|
Datasheet |
TF3 | Tray | Active | SPST-NO | Off-Mom | 16A (AC) | 125 V | - | Lever, Roller | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 190gf | - | 0.803" (20.4mm) | 0.087" (2.2mm) | 0.047" (1.2mm) | 0.015" (0.4mm) | -40°C ~ 125°C |
|

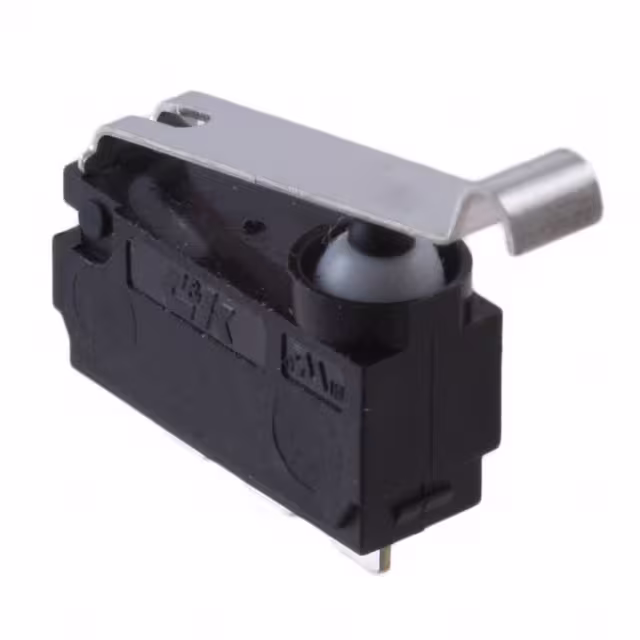

ZMSL03130T11SSCSWITCH SNAP ACTION SPDT 3A 125V C&K |
2,638 |
|
Datasheet |
ZMS | Tray | Obsolete | SPDT | On-Mom | 3A (AC/DC) | 125 V | 12 V | Lever, Simulated Roller | Chassis Mount | Solder Lug | IP65 - Dust Tight, Water Resistant | - | 160gf | 45gf | 0.539" (13.7mm) | 0.188" (4.8mm) | 0.030" (0.76mm) | 0.062" (1.6mm) | -40°C ~ 85°C |
|

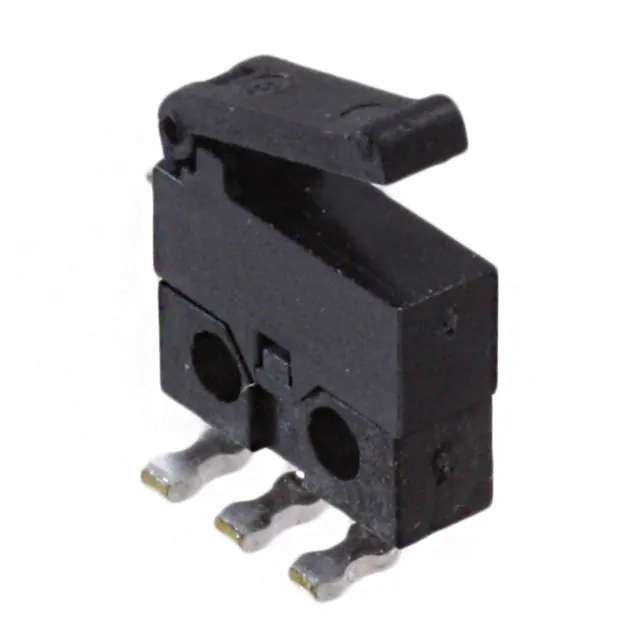

MDS6500AL02LSSWITCH SNAP ACT SPDT 300MA 30V C&K |
5,307 |
|
Datasheet |
MDS | Bulk | Active | SPDT | On-Mom | 300mA (DC) | - | 30 V | Lever, Straight | Through Hole, Right Angle | PC Pin | - | - | 50gf | 3.000gf | 0.264" (6.7mm) | 0.071" (1.8mm) | - | 0.011" (0.3mm) | -25°C ~ 70°C |
|

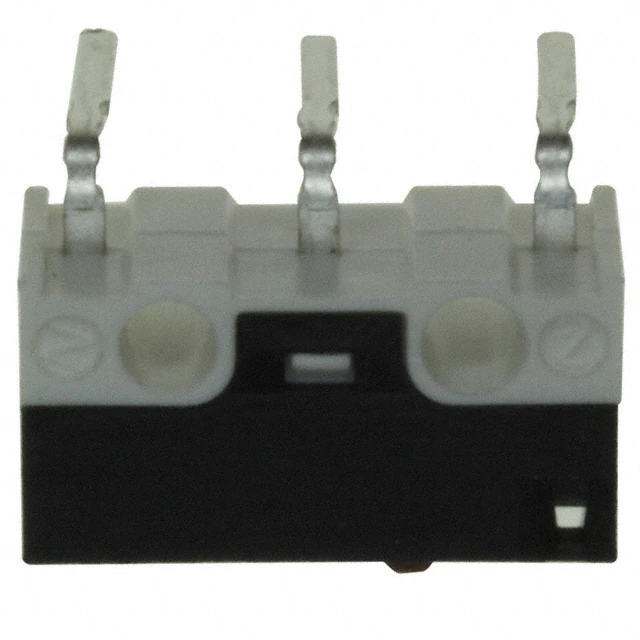

ZMCJF7P0RSWITCH SNAP ACTION SPDT 3A 125V C&K |
206 |
|
Datasheet |
ZM | Tray | Active | SPDT | On-Mom | 3A (AC) | 125 V | - | Round (Pin Plunger) | Through Hole, Right Angle | PC Pin | - | - | 150gf | - | 0.276" (7.0mm) | - | - | - | -30°C ~ 85°C |
|

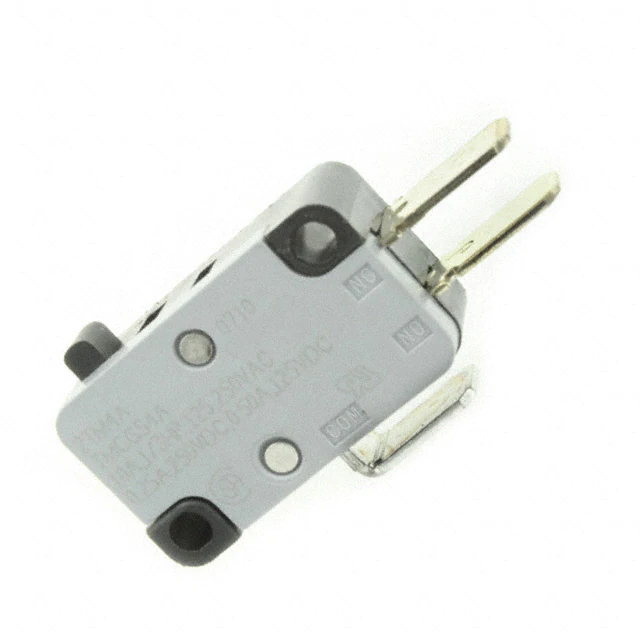

TMCGD6SP004ACSWITCH SNAP ACTION SPDT 10A 125V C&K |
335 |
|
Datasheet |
TM | Bulk | Active | SPDT | On-Mom | 10A (AC), 500mA (DC) | 125 V | 125 V | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 75gf | 28gf | 0.579" (14.7mm) | 0.055" (1.4mm) | 0.013" (0.33mm) | 0.035" (0.9mm) | -55°C ~ 150°C |
|
ZMSH03130P00PSCSWITCH SNAP ACTION SPDT 3A 125V C&K |
3,400 |
|
Datasheet |
ZMS | Bulk | Active | SPDT | On-Mom | 3A (AC/DC) | 125 V | 12 V | Round (Pin Plunger) | Through Hole | PC Pin | IP65 - Dust Tight, Water Resistant | - | 130gf | 13gf | 0.415" (10.55mm) | 0.030" (0.8mm) | 0.012" (0.3mm) | 0.065" (1.7mm) | -40°C ~ 85°C |
|

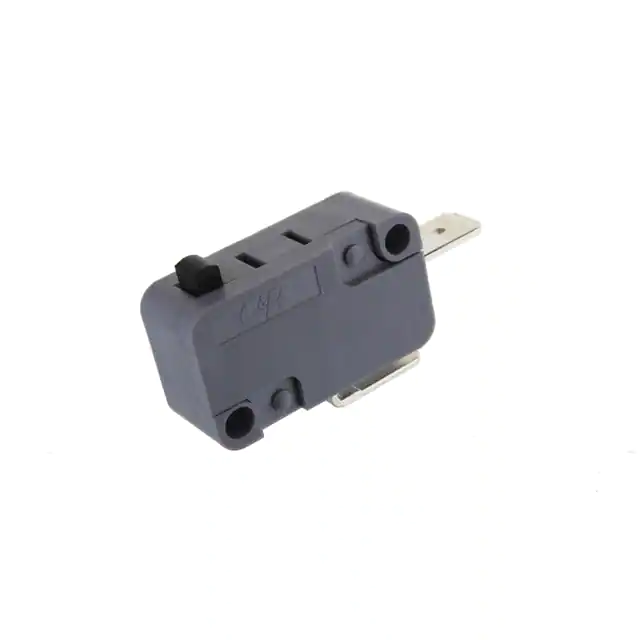

TF316CFP004AYSWITCH SNAP ACT SPST-NO 16A 125V C&K |
437 |
|
Datasheet |
TF3 | Tray | Active | SPST-NO | Off-Mom | 16A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 190gf | - | 0.567" (14.4mm) | 0.075" (1.9mm) | 0.047" (1.2mm) | 0.026" (0.7mm) | -40°C ~ 125°C |
|

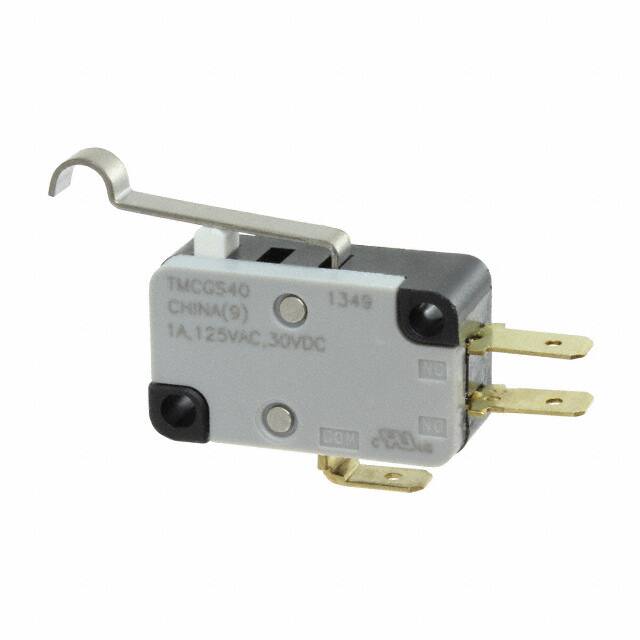

TMCGF5ST1440CSWITCH SNAP ACTION SPDT 1A 125V C&K |
128 |
|
Datasheet |
TM | Bulk | Active | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Lever, Simulated Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 50gf | 10gf | 0.745" (18.9mm) | 0.140" (3.6mm) | 0.050" (1.3mm) | 0.062" (1.6mm) | -55°C ~ 150°C |
|

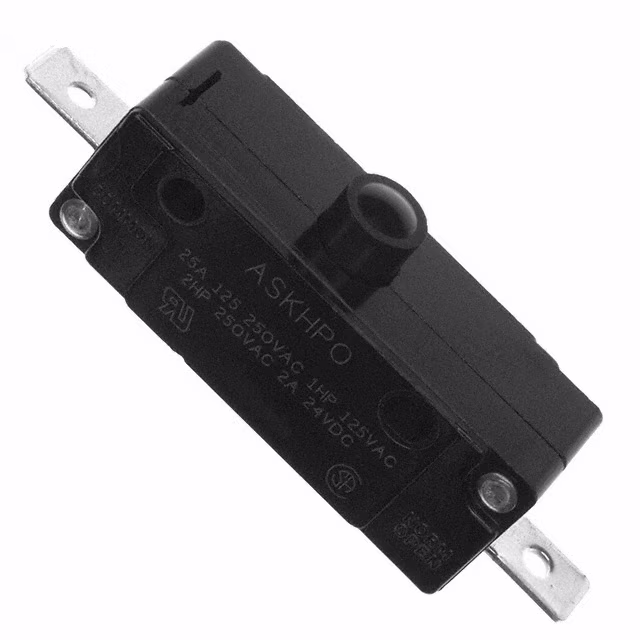

ASKHF3P04AYSWITCH SNAP ACT SPST-NO 25A 125V C&K |
601 |
|
Datasheet |
A | Bulk | Active | SPST-NO | Off-Mom | 25A (AC), 2A (DC) | 125 V | 24 V | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 567gf | 85gf | - | 0.050" (1.27mm) | - | 0.050" (1.27mm) | -55°C ~ 85°C |
|
TFS10SP0040CSWITCH SNAP ACTION SPDT 10A 125V C&K |
496 |
|
Datasheet |
TFS | Box | Active | SPDT | On-Mom | 10A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | - | 200gf | 30gf | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.016" (0.4mm) | 0.040" (1.0mm) | -40°C ~ 85°C |
