Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ASKHF3J04AWSWITCH SNAP ACT SPST-NC 25A 125V C&K |
116 |
|
Datasheet |
A | Bulk | Active | SPST-NC | On-Mom | 25A (AC), 2A (DC) | 125 V | 24 V | Overtravel Plunger | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 567gf | 85gf | - | 0.050" (1.27mm) | - | 0.187" (4.75mm) | -55°C ~ 85°C |
|
ADPDC2P04ACSWITCH SNAP ACTION DPDT 15A 125V C&K |
215 |
|
Datasheet |
A | Bulk | Active | DPDT | On-Mom | 15A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 850gf | 170gf | - | 0.050" (1.27mm) | - | 0.050" (1.27mm) | -55°C ~ 85°C |
|

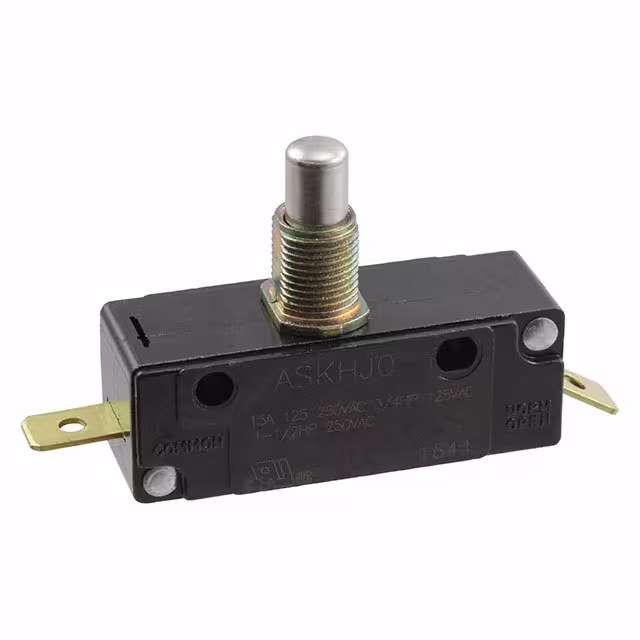

ASKHC2J04AYSWITCH SNAP ACT SPST-NO 15A 125V C&K |
218 |
|
Datasheet |
A | Bulk | Active | SPST-NO | Off-Mom | 15A (AC) | 125 V | - | Overtravel Plunger | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 567gf | 85gf | - | 0.050" (1.27mm) | - | 0.187" (4.75mm) | -55°C ~ 85°C |
|
|
ADPDC2P04AYSWITCH SNAP ACT DPST-NO 15A 125V C&K |
105 |
|
Datasheet |
A | Bulk | Active | DPST-NO | Off-Mom | 15A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 850gf | 170gf | - | 0.050" (1.27mm) | - | 0.050" (1.27mm) | -55°C ~ 85°C |
|

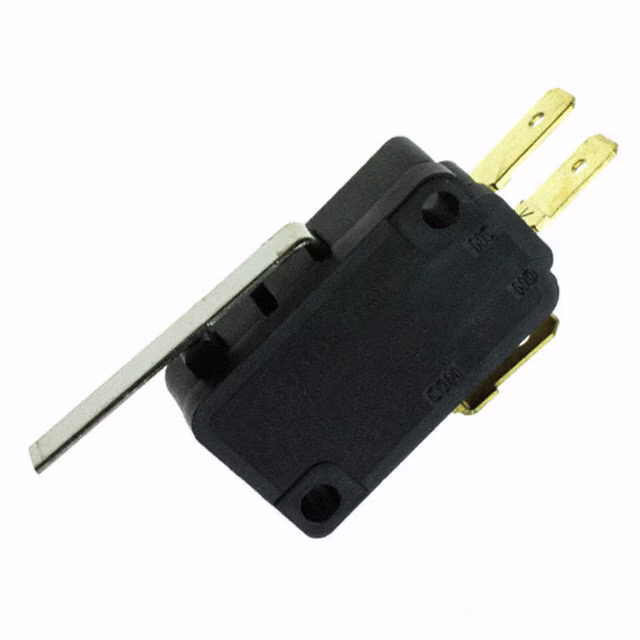

TFCDH8ST1540CSWITCH SNAP ACTION SPDT 5A 277V C&K |
287 |
|
Datasheet |
TF | Bulk | Active | SPDT | On-Mom | 5A (AC) | 277 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 12gf | 4.000gf | 0.600" (15.2mm) | 0.110" (2.8mm) | 0.030" (0.76mm) | 0.065" (1.7mm) | -40°C ~ 85°C |
|

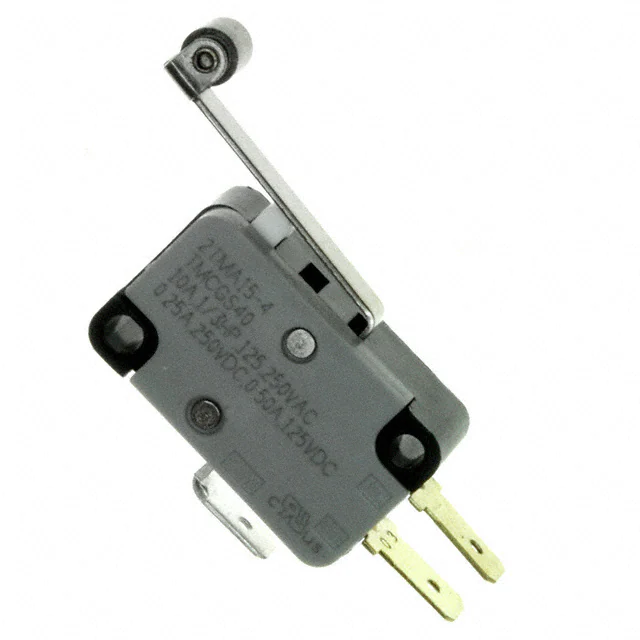

TMCGD6SA1540CSWITCH SNAP ACTION SPDT 10A 125V C&K |
531 |
|
Datasheet |
TM | Bulk | Active | SPDT | On-Mom | 10A (AC), 500mA (DC) | 125 V | 125 V | Lever, Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 45gf | 10gf | 0.812" (20.6mm) | 0.161" (4.1mm) | 0.030" (0.76mm) | 0.065" (1.7mm) | -55°C ~ 150°C |
|
2HBFX985SWITCH SNAP ACTION SPDT 20A 125V C&K |
176 |
|
Datasheet |
HB | Tray | Active | SPDT | On-Mom | 20A (AC), 500mA (DC) | 125 V | 125 V | Lever, Roller | Chassis Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | 283gf | 85gf | 1.120" (28.45mm) | 0.080" (2.0mm) | 0.008" (0.2mm) | 0.090" (2.3mm) | -55°C ~ 150°C |
|
SDS002RSW SDS N.C. DET ROHS SMT T/R C&K |
15,000 |
|
Datasheet |
SDS | Bulk | Active | SPST-NC | On-Mom | 100mA (DC) | - | 12 V | Overtravel Plunger | Surface Mount, Right Angle | SMD (SMT) Tab | - | - | 75gf | - | - | - | - | 0.081" (2.05mm) | -40°C ~ 85°C |
|
LCGHX1A10RCESWITCH SNAP ACTION SPDT 1A 125V C&K |
2,080 |
|
Datasheet |
LC | Bulk | Active | SPDT | On-Mom | 1A (AC/DC) | 250 V | 30 V | Lever, Roller | Through Hole, Right Angle | PC Pin | - | - | 57gf | 12gf | 0.571" (14.5mm) | 0.140" (3.6mm) | 0.034" (0.86mm) | 0.026" (0.7mm) | -25°C ~ 85°C |
|
MMGGD1D0CSNAP C&K |
200 |
|
Datasheet |
MM | Bulk | Active | SPDT | On-Mom | 7A (AC) | 250 V | - | Overtravel Plunger | Chassis Mount | Solder Turret | - | - | 142gf | 20gf | 0.472" (12.0mm) | 0.030" (0.8mm) | 0.004" (0.1mm) | 0.040" (1.0mm) | -55°C ~ 135°C |
