Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SDS005SWITCH DETECT SPST-NC 100MA 12V C&K |
572 |
|
Datasheet |
SDS | Tray | Active | SPST-NC | On-Mom | 100mA (DC) | - | 12 V | Overtravel Plunger | Surface Mount, Right Angle | SMD (SMT) Tab | - | - | 75gf | - | - | - | - | 0.079" (2.0mm) | -40°C ~ 85°C |
|

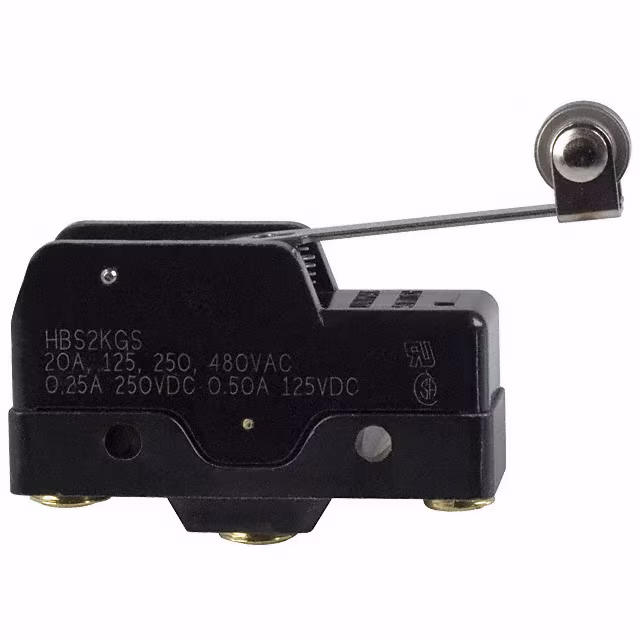

HBS2KGB4SA055CSWITCH SNAP ACTION SPDT 20A 125V C&K |
4,661 |
|
Datasheet |
HB | Bulk | Active | SPDT | On-Mom | 20A (AC), 500mA (DC) | 125 V | 125 V | Lever, Roller | Chassis Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | 99gf | 21gf | 1.120" (28.45mm) | 0.312" (7.9mm) | 0.062" (1.6mm) | 0.156" (3.96mm) | -55°C ~ 150°C |
|

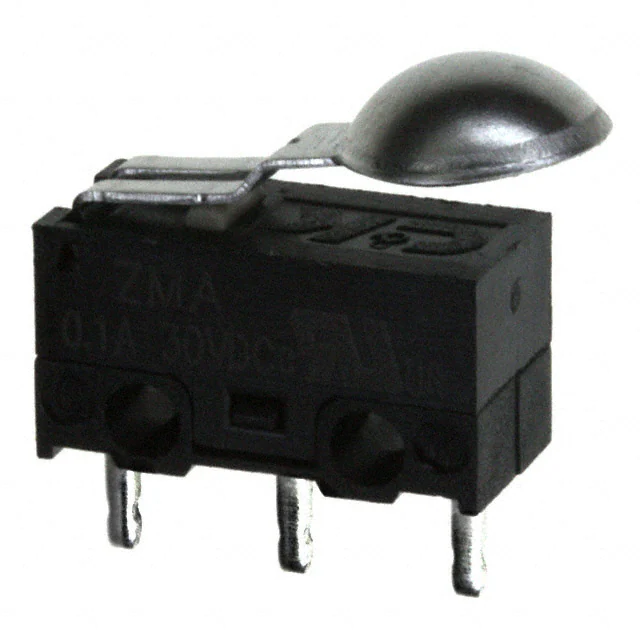

ZMA00A080S06PCSWITCH SNAP ACT SPDT 100MA 125V C&K |
306 |
|
Datasheet |
ZMA | Tray | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 60 V | Lever, Simulated Roller | Through Hole | PC Pin | - | - | 33gf | 5.000gf | 0.420" (10.7mm) | 0.055" (1.4mm) | - | 0.049" (1.25mm) | -40°C ~ 85°C |
|

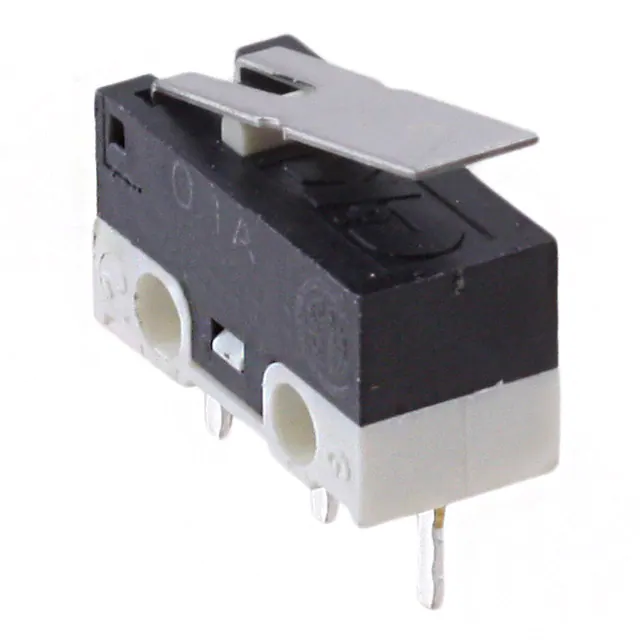

ZMCHM9L3TSWITCH SNAP ACT SPDT 200MA 60V C&K |
3,483 |
|
Datasheet |
ZM | Tray | Active | SPDT | On-Mom | 200mA (DC) | - | 60 V | Lever, Leaf | Through Hole | PC Pin | - | - | 30gf | - | 0.330" (8.4mm) | - | - | - | -30°C ~ 85°C |
|

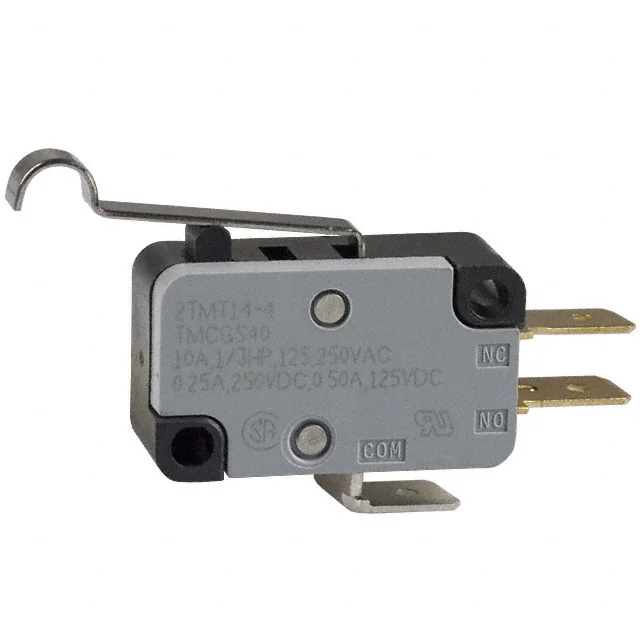

TMCGD6ST1440CSWITCH SNAP ACTION SPDT 10A 125V C&K |
2,855 |
|
Datasheet |
TM | Bulk | Active | SPDT | On-Mom | 10A (AC), 500mA (DC) | 125 V | 125 V | Lever, Simulated Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 50gf | 10gf | 0.745" (18.9mm) | 0.140" (3.6mm) | 0.050" (1.3mm) | 0.062" (1.6mm) | -55°C ~ 150°C |
|

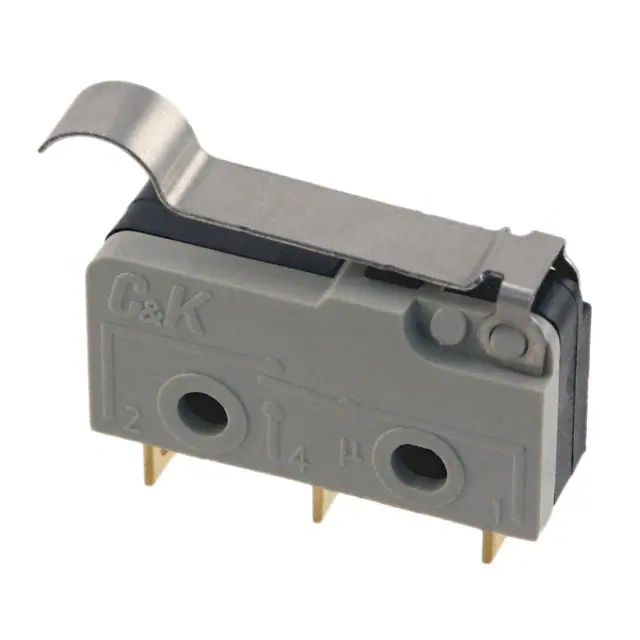

LCGGX1T13ECSWITCH SNAP ACTION SPDT 1A 125V C&K |
1,882 |
|
Datasheet |
LC | Bulk | Active | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Lever, Simulated Roller | Chassis Mount | Solder Lug | - | - | 52gf | 6.000gf | 0.455" (11.6mm) | 0.131" (3.3mm) | 0.032" (0.81mm) | 0.026" (0.7mm) | -25°C ~ 85°C |
|

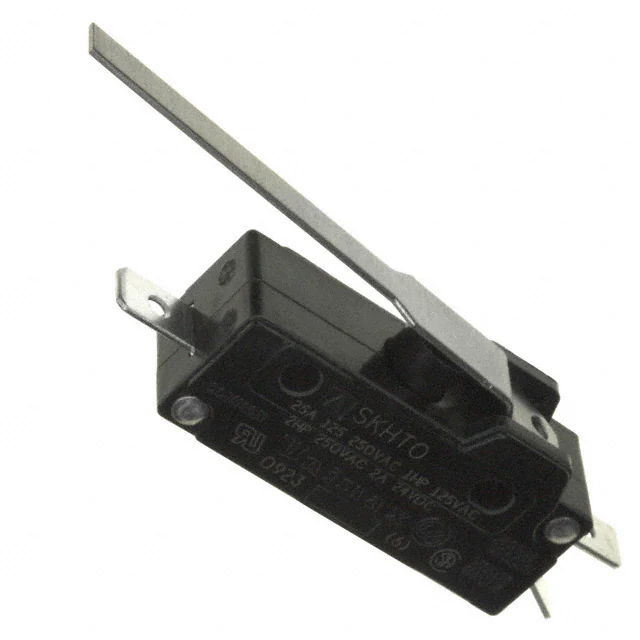

ASKHF3T04ACSWITCH SNAP ACTION SPDT 25A 125V C&K |
4,188 |
|
Datasheet |
A | Bulk | Active | SPDT | On-Mom | 25A (AC), 2A (DC) | 125 V | 24 V | Lever, Straight | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 113gf | 14gf | 0.312" (7.9mm) | 0.312" (7.9mm) | - | 0.187" (4.75mm) | -55°C ~ 85°C |
|
TFCDK6ST2640CSWITCH SNAP ACTION SPDT 11A 277V C&K |
3,244 |
|
Datasheet |
TF | Bulk | Active | SPDT | On-Mom | 11A (AC), 500mA (DC) | 277 V | 125 V | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 4.000gf | 1.000gf | 0.600" (15.2mm) | 0.500" (12.7mm) | 0.100" (2.54mm) | 0.235" (6.0mm) | -40°C ~ 85°C |
|
ASKHC2A04ACSWITCH SNAP ACTION SPDT 15A 125V C&K |
3,408 |
|
Datasheet |
A | Bulk | Active | SPDT | On-Mom | 15A (AC) | 125 V | - | Lever, Roller | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 113gf | 14gf | 0.718" (18.24mm) | 0.312" (7.9mm) | - | 0.312" (7.9mm) | -55°C ~ 85°C |
|

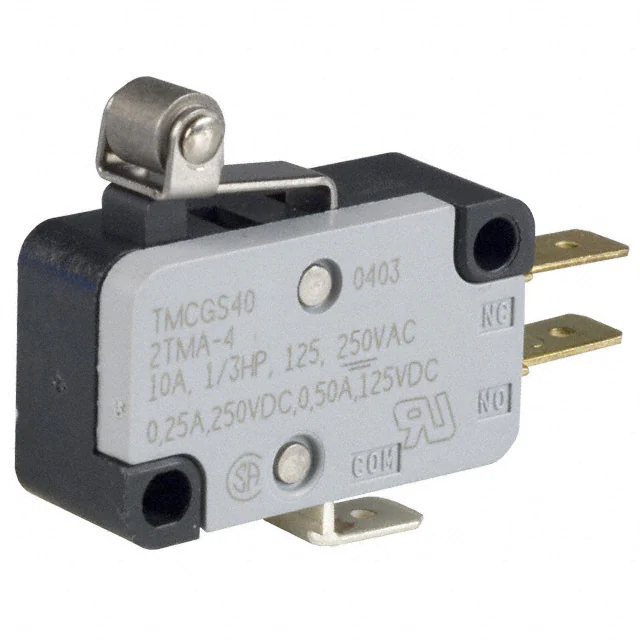

TMCGD6SA1040CSWITCH SNAP ACTION SPDT 10A 125V C&K |
2,061 |
|
Datasheet |
TM | Bulk | Active | SPDT | On-Mom | 10A (AC), 500mA (DC) | 125 V | 125 V | Lever, Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 90gf | 28gf | 0.812" (20.6mm) | 0.071" (1.8mm) | 0.013" (0.33mm) | 0.035" (0.9mm) | -55°C ~ 150°C |
