Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

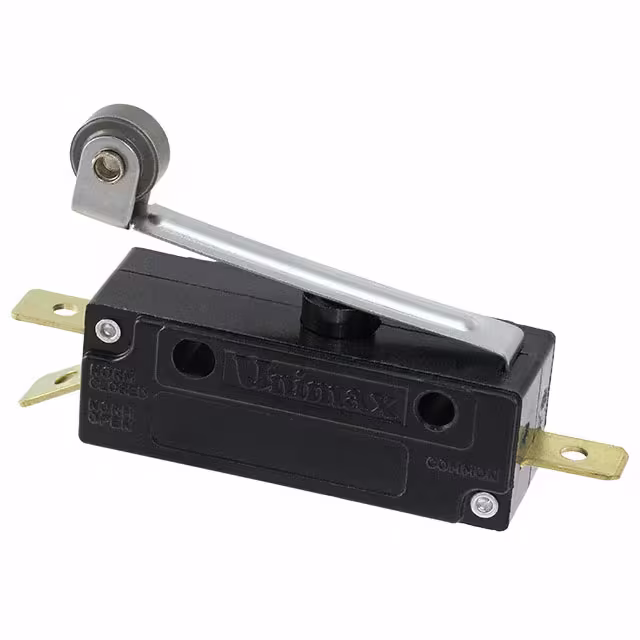

ASKHC2W04ACSWITCH SNAP ACTION SPDT 15A 125V C&K |
2,725 |
|
Datasheet |
A | Tray | Active | SPDT | On-Mom | 15A (AC) | 125 V | - | Lever, Roller | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 340gf | 28gf | 0.718" (18.24mm) | 0.281" (7.14mm) | - | 0.062" (1.6mm) | -55°C ~ 85°C |
|

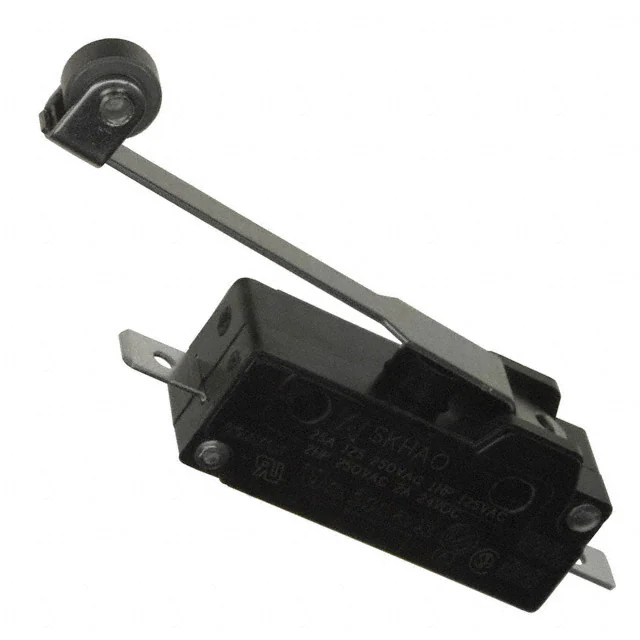

ASKHF3A04AYSWITCH SNAP ACT SPST-NO 25A 125V C&K |
1,185 |
|
Datasheet |
A | Bulk | Active | SPST-NO | Off-Mom | 25A (AC), 2A (DC) | 125 V | 24 V | Lever, Roller | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 113gf | 14gf | 0.718" (18.24mm) | 0.312" (7.9mm) | - | 0.312" (7.9mm) | -55°C ~ 85°C |
|
DS2D6CQ2SWITCH SNAP ACTION DPDT 10A 125V C&K |
2,748 |
|
Datasheet |
DS | Bulk | Active | DPDT | On-Mom | 10A (AC) | 125 V | - | Push-Pull Plunger | Panel Mount, Snap-In | Quick Connect - 0.187" (4.7mm) | - | Pull On Lock | 560gf | - | 0.660" (16.76mm) | - | - | 0.520" (13.2mm) | -40°C ~ 85°C |
|
|
DS2D6CQ1SWITCH SNAP ACTION DPDT 10A 125V C&K |
3,079 |
|
Datasheet |
DS | Bulk | Active | DPDT | On-Mom | 10A (AC) | 125 V | - | Push-Pull Plunger | Panel Mount, Snap-In | Quick Connect - 0.187" (4.7mm) | - | Pull On Lock | 560gf | - | 0.660" (16.76mm) | - | - | 0.520" (13.2mm) | -40°C ~ 85°C |
|
HBS2KHB4SJ011CSWITCH SNAP ACTION SPDT 20A 125V C&K |
2,350 |
|
Datasheet |
HB | Bulk | Active | SPDT | On-Mom | 20A (AC), 500mA (DC) | 125 V | 125 V | Overtravel Plunger | Panel Mount | Solder Lug | IP65 - Dust Tight, Water Resistant | - | 567gf | 113gf | 0.860" (21.84mm) | 0.025" (0.65mm) | - | 0.219" (5.6mm) | -55°C ~ 150°C |
|

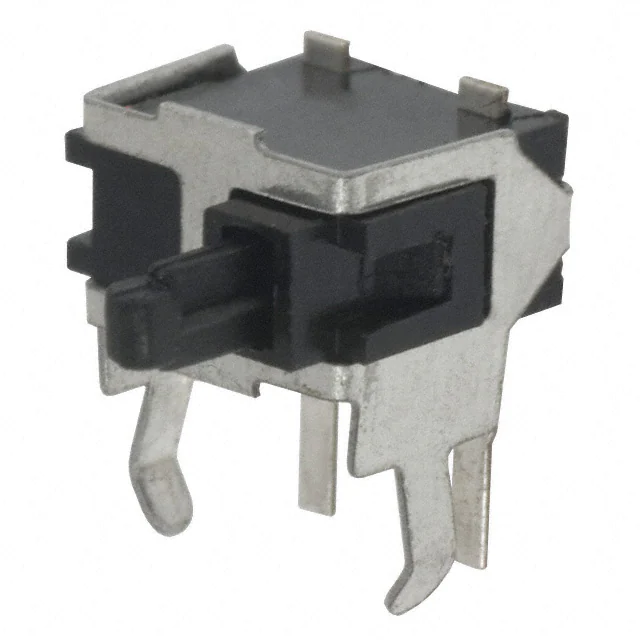

DDS002SWITCH SNAP SPST-NO 100MA 30V C&K |
1,557 |
|
Datasheet |
DDS | Bulk | Active | SPST-NO | Off-Mom | 100mA (DC) | - | 30 V | Overtravel Plunger | Through Hole | PC Pin | - | - | 40gf | - | 0.197" (5.0mm) | - | - | 0.079" (2.0mm) | -20°C ~ 70°C |
|

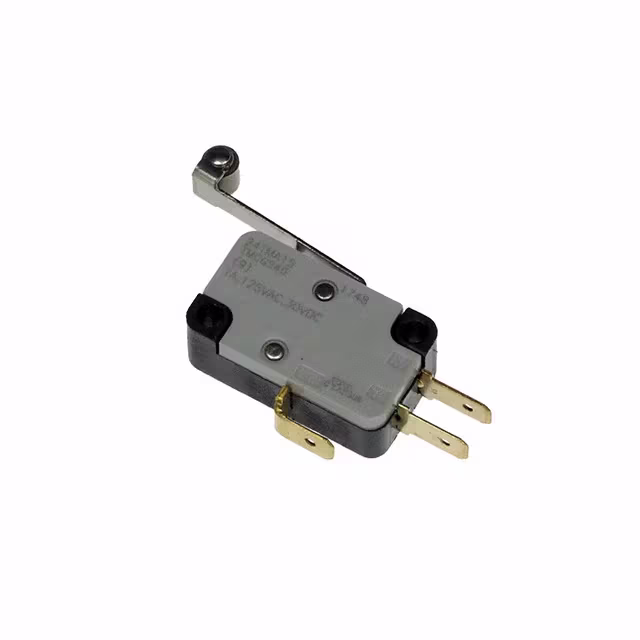

TMCGF5SA1540CSWITCH SNAP ACTION SPDT 1A 125V C&K |
3,363 |
|
Datasheet |
TM | Bulk | Active | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Lever, Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 45gf | 10gf | 0.812" (20.6mm) | 0.161" (4.1mm) | 0.030" (0.76mm) | 0.065" (1.7mm) | -55°C ~ 150°C |
|

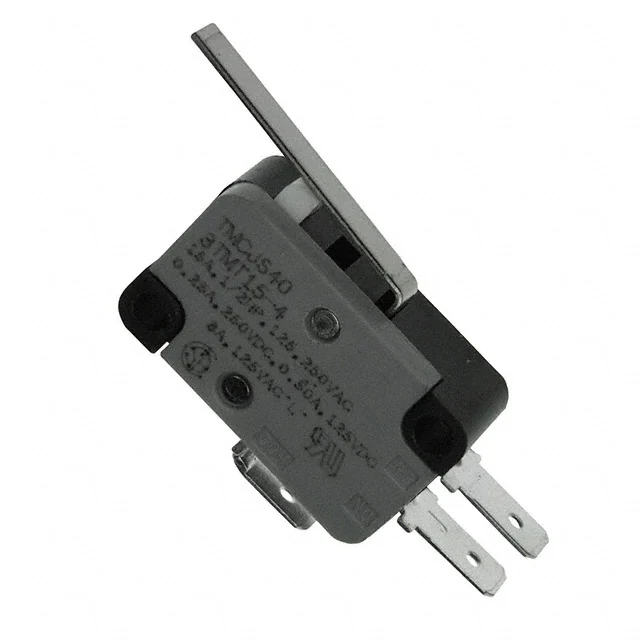

TMCJG6ST1540CSWITCH SNAP ACTION SPDT 15A 125V C&K |
3,896 |
|
Datasheet |
TM | Bulk | Active | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 80gf | 20gf | 0.600" (15.2mm) | 0.161" (4.1mm) | 0.032" (0.81mm) | 0.075" (1.9mm) | -55°C ~ 150°C |
|
DS2F5AQ1SWITCH SNAP ACT DPDT 100MA 125V C&K |
2,434 |
|
Datasheet |
DS | Bulk | Active | DPDT | On-Mom | 100mA (AC) | 125 V | - | Round (Pin Plunger) | Panel Mount, Snap-In | Quick Connect - 0.187" (4.7mm) | - | - | 680gf | - | 0.350" (8.9mm) | - | - | 0.125" (3.2mm) | -40°C ~ 85°C |
|
TMCGD6VT1410CSWITCH SNAP ACTION SPDT 10A 125V C&K |
2,519 |
|
Datasheet |
TM | Bulk | Active | SPDT | On-Mom | 10A (AC), 500mA (DC) | 125 V | 125 V | Lever, Simulated Roller | Chassis Mount | Solder Lug | - | - | 50gf | 10gf | 0.745" (18.9mm) | 0.140" (3.6mm) | 0.050" (1.3mm) | 0.062" (1.6mm) | -55°C ~ 150°C |
