Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DS2F5BQ2SWITCH SNAP ACT DPDT 100MA 125V C&K |
2,366 |
|
Datasheet |
DS | Bulk | Active | DPDT | On-Mom | 100mA (AC) | 125 V | - | Round (Pin Plunger) | Panel Mount, Snap-In | Quick Connect - 0.187" (4.7mm) | - | - | 680gf | - | 0.770" (19.5mm) | - | - | 0.398" (10.1mm) | -40°C ~ 85°C |
|
DS2F5CQ1SWITCH SNAP ACT DPDT 100MA 125V C&K |
3,986 |
|
Datasheet |
DS | Bulk | Active | DPDT | On-Mom | 100mA (AC) | 125 V | - | Push-Pull Plunger | Panel Mount, Snap-In | Quick Connect - 0.187" (4.7mm) | - | Pull On Lock | 560gf | - | 0.660" (16.76mm) | - | - | 0.520" (13.2mm) | -40°C ~ 85°C |
|
DS2F5AQ3SWITCH SNAP ACT DPDT 100MA 125V C&K |
1,942 |
|
Datasheet |
DS | Bulk | Active | DPDT | On-Mom | 100mA (AC) | 125 V | - | Round (Pin Plunger) | Panel Mount, Snap-In | Quick Connect - 0.250" (6.3mm) | - | - | 680gf | - | 0.350" (8.9mm) | - | - | 0.125" (3.2mm) | -40°C ~ 85°C |
|

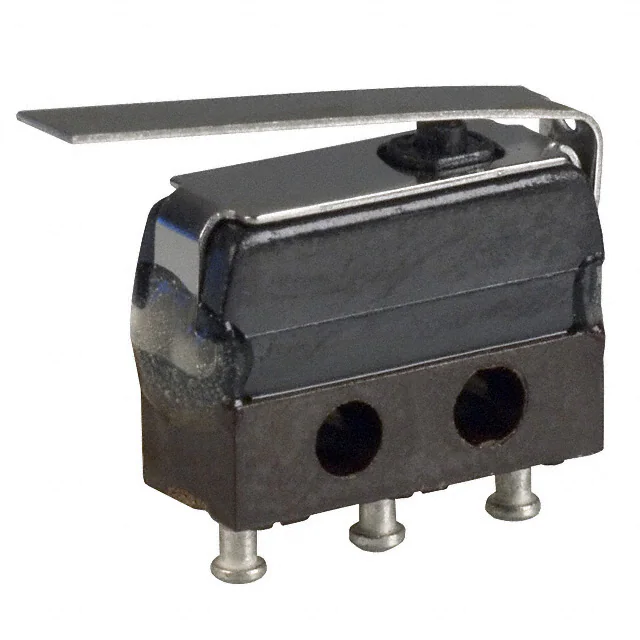

MMGGD1L0CSWITCH SNAP ACTION SPDT 7A 250V C&K |
2,763 |
|
Datasheet |
MM | Bulk | Active | SPDT | On-Mom | 7A (AC) | 250 V | - | Lever, Straight | Chassis Mount | Solder Turret | - | - | 115gf | 20gf | 0.330" (8.4mm) | 0.090" (2.3mm) | 0.026" (0.65mm) | 0.045" (1.1mm) | -55°C ~ 135°C |
|

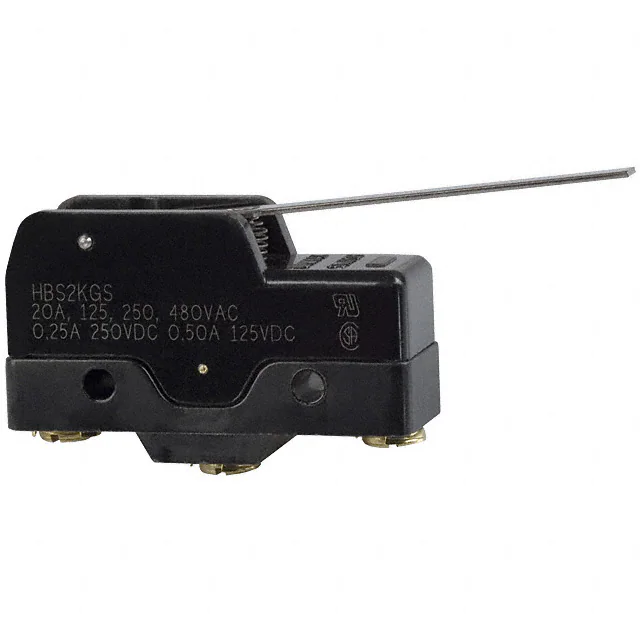

HBS2KGB4ST055CSWITCH SNAP ACTION SPDT 20A 125V C&K |
3,651 |
|
Datasheet |
HB | Bulk | Active | SPDT | On-Mom | 20A (AC), 500mA (DC) | 125 V | 125 V | Lever, Straight | Chassis Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | 71gf | 14gf | 0.720" (18.3mm) | 0.380" (9.65mm) | 0.080" (2.0mm) | 0.190" (4.8mm) | -55°C ~ 150°C |
|
12SL40210SWITCH SNAP ACTION SPDT 10A 125V C&K |
2,717 |
|
Datasheet |
SL | Box | Active | SPDT | On-On-Mom | 10A (AC), 5A (DC) | 125 V | 30 V | Push-Pull Plunger | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 200gf | - | - | - | - | - | -40°C ~ 85°C |
|
|
11SL40410SWITCH SNAP ACTION SPDT 10A 125V C&K |
2,118 |
|
Datasheet |
SL | Box | Active | SPDT | On-On-Mom | 10A (AC), 5A (DC) | 125 V | 30 V | Push-Pull Plunger | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 200gf | - | - | - | - | - | -40°C ~ 85°C |
|
ZMA00A150L04RCSWITCH SNAP ACT SPDT 100MA 125V C&K |
3,659 |
|
Datasheet |
ZMA | Tray | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 60 V | Lever, Straight | Through Hole, Right Angle | PC Pin | - | - | 50gf | 8.000gf | 0.312" (7.9mm) | 0.120" (3.0mm) | - | 0.025" (0.6mm) | -40°C ~ 85°C |
|
DS1D6CQ3SWITCH SNAP ACTION SPDT 10A 125V C&K |
3,229 |
|
Datasheet |
DS | Bulk | Active | SPDT | On-Mom | 10A (AC) | 125 V | - | Push-Pull Plunger | Panel Mount, Snap-In | Quick Connect - 0.250" (6.3mm) | - | Pull On Lock | 385gf | - | 0.660" (16.76mm) | - | - | 0.520" (13.2mm) | -40°C ~ 85°C |
|

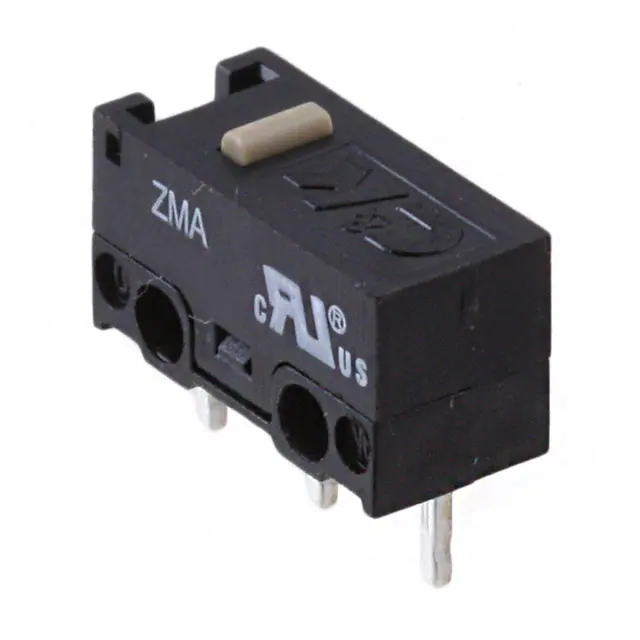

ZMA00A150P00PCSWITCH SNAP ACT SPDT 100MA 125V C&K |
118 |
|
Datasheet |
ZMA | Tray | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 60 V | Round (Pin Plunger) | Through Hole | PC Pin | - | - | 150gf | 35gf | 0.272" (6.9mm) | 0.024" (0.6mm) | - | 0.008" (0.2mm) | -40°C ~ 85°C |
