Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LCW012P00SDYSWITCH SNAP SPST-NO 100MA 125V C&K |
225 |
|
Datasheet |
LCW | Tray | Obsolete | SPST-NO | Off-Mom | 100mA (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Solder Lug | IP67 - Dust Tight, Waterproof | - | 203gf | 30gf | 0.343" (8.7mm) | 0.040" (1.0mm) | 0.035" (0.9mm) | 0.025" (0.6mm) | -40°C ~ 120°C |
|
|
LCW012P00SDCSWITCH SNAP ACT SPDT 100MA 125V C&K |
224 |
|
Datasheet |
LCW | Tray | Obsolete | SPDT | On-Mom | 100mA (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Solder Lug | IP67 - Dust Tight, Waterproof | - | 203gf | 30gf | 0.343" (8.7mm) | 0.040" (1.0mm) | 0.035" (0.9mm) | 0.025" (0.6mm) | -40°C ~ 120°C |
|

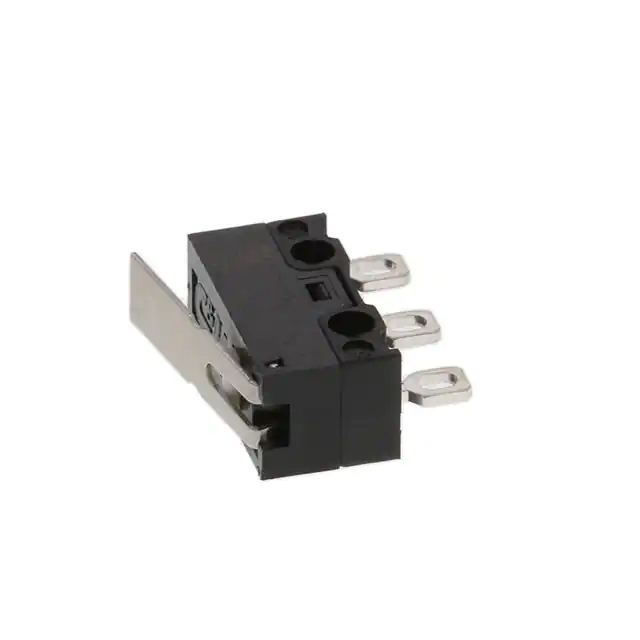

ZMA00A080L04ECSWITCH SNAP ACT SPDT 0.1A 125V C&K |
2,713 |
|
Datasheet |
ZMA | Bulk | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 60 V | Lever, Straight | Chassis Mount | Solder Lug | - | - | 30gf | 5.000gf | 0.312" (7.9mm) | 0.120" (3.0mm) | - | 0.025" (0.6mm) | -40°C ~ 85°C |
|

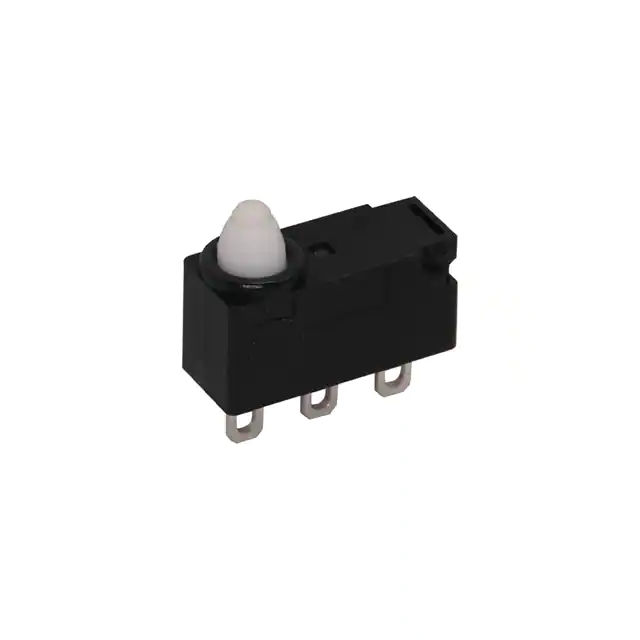

ZMV 03A 150 P00 P C A0SWITCH SNAP ACTION SPDT 3A 125V C&K |
4,292 |
|
Datasheet |
ZMV | Tray | Active | SPDT | On-Mom | 3A (AC/DC) | 125 V | 24 V | Round (Pin Plunger) | Through Hole | PC Pin | IP67 - Dust Tight, Waterproof | - | 150gf | 20gf | 0.409" (10.4mm) | - | 0.010" (0.25mm) | 0.045" (1.1mm) | -40°C ~ 85°C |
|

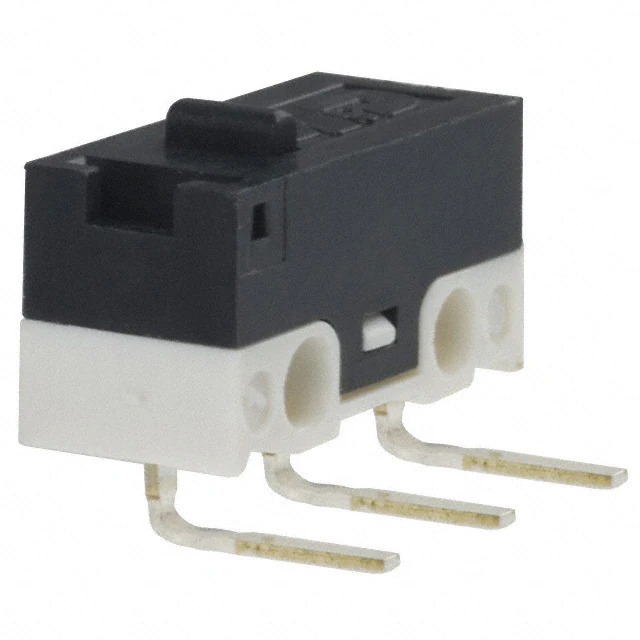

ZMCJF7P0LSWITCH SNAP ACTION SPDT 3A 125V C&K |
3,523 |
|
Datasheet |
ZM | Tray | Active | SPDT | On-Mom | 3A (AC) | 125 V | - | Round (Pin Plunger) | Through Hole, Right Angle | PC Pin | - | - | 150gf | - | 0.276" (7.0mm) | - | - | - | -30°C ~ 85°C |
|
TF2CJK6VT1410CSWITCH SNAP ACTION SPDT 10A 125V C&K |
4,702 |
|
Datasheet |
TF2 | Bulk | Active | SPDT | On-Mom | 10A (AC) | 125 V | - | Lever, Simulated Roller | Chassis Mount | Solder Lug | - | - | 110gf | 14gf | 0.738" (18.7mm) | 0.218" (5.5mm) | 0.045" (1.1mm) | 0.055" (1.4mm) | -40°C ~ 85°C |
|

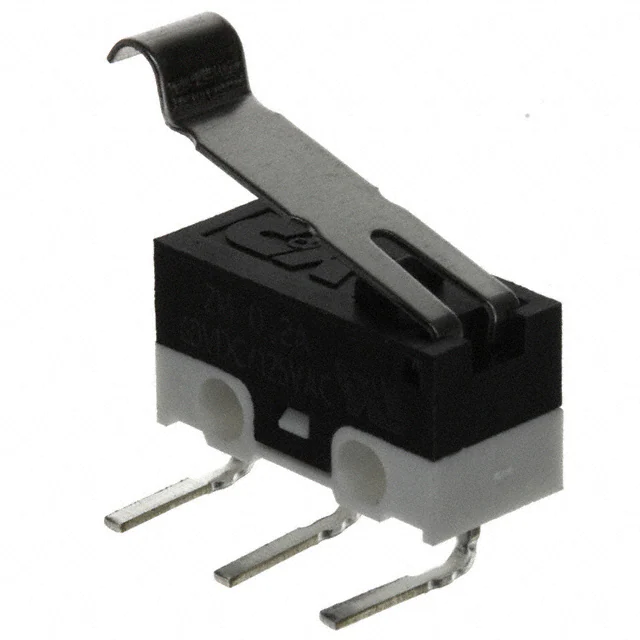

ZMCJF7T13RSWITCH SNAP ACTION SPDT 3A 125V C&K |
2,355 |
|
Datasheet |
ZM | Tray | Active | SPDT | On-Mom | 3A (AC) | 125 V | - | Lever, Simulated Roller | Through Hole, Right Angle | PC Pin | - | - | 40gf | - | 0.413" (10.5mm) | - | - | - | -30°C ~ 85°C |
|
ZMCJF7L0RSWITCH SNAP ACTION SPDT 3A 125V C&K |
1,747 |
|
Datasheet |
ZM | Tray | Active | SPDT | On-Mom | 3A (AC) | 125 V | - | Lever, Leaf | Through Hole, Right Angle | PC Pin | - | - | 50gf | - | 0.330" (8.4mm) | - | - | - | -30°C ~ 85°C |
|

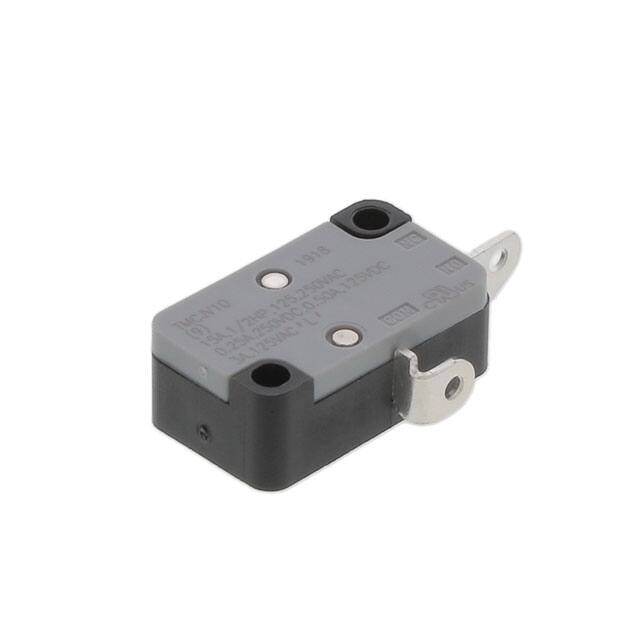

TMCJG6VP0010YSNAP SWITCH 150GF 15A @ 125VAC S C&K |
4,413 |
|
Datasheet |
TM | Bulk | Active | SPST-NO | Off-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Round (Pin Plunger) | Chassis Mount | Solder Lug | - | - | 150gf | 60gf | 0.579" (14.7mm) | 0.055" (1.4mm) | 0.013" (0.33mm) | 0.035" (0.9mm) | -55°C ~ 150°C |
|
TFS03SP0040CSWITCH SNAP ACTION SPDT 3A 125V C&K |
1,532 |
|
Datasheet |
TFS | Box | Active | SPDT | On-Mom | 3A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | - | 200gf | 30gf | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.016" (0.4mm) | 0.040" (1.0mm) | -40°C ~ 85°C |
