Pulse Transformers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

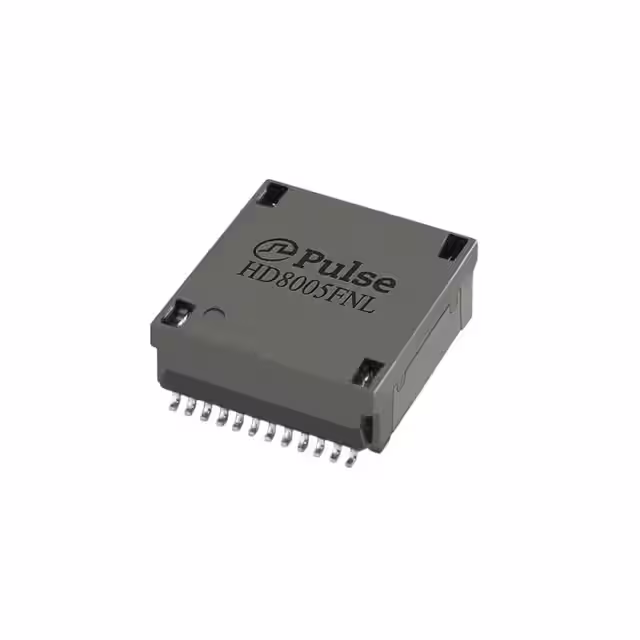

HD8005FNLPULSE XFMR 1CT:1CT TX 1CT:1CT RX Pulse Electronics |
175 |
|
Datasheet |
- | Tube | Active | HDBase-T | 100µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.539" L x 0.591" W (13.70mm x 15.00mm) | 0.225" (5.72mm) | 0°C ~ 70°C | - | - |
|

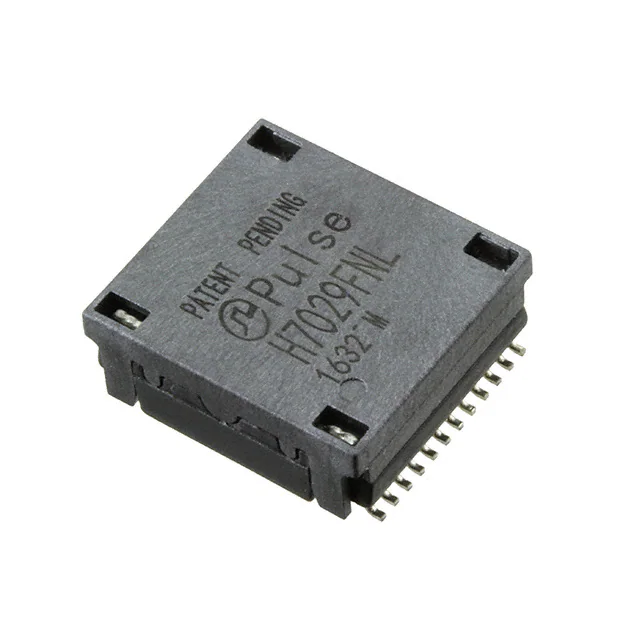

H7029FNLT10GBASE-T DISCRETE 4CH MAR/SOL P Pulse Electronics |
5,974 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10G Base-T | 120µH | - | 1:1 | Surface Mount | 0.539" L x 0.591" W (13.70mm x 15.00mm) | 0.230" (5.85mm) | 0°C ~ 70°C | - | - |
|
H6080FNLPULSE XFMR 1CT:1CT TX 1CT:1CT RX Pulse Electronics |
143 |
|
Datasheet |
- | Tube | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 1.095" L x 0.590" W (27.81mm x 14.99mm) | 0.285" (7.24mm) | 0°C ~ 70°C | - | - |
|

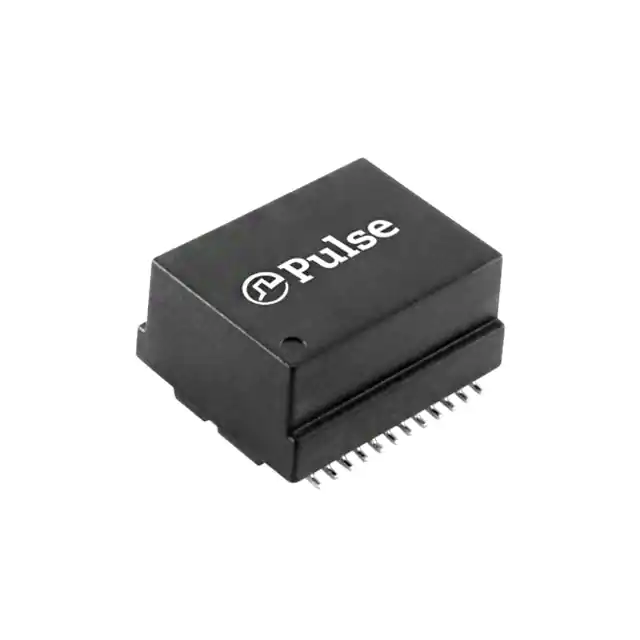

H5187NLXFRMR MODULE 1000B-T 1 CH SMT Pulse Electronics |
297 |
|
Datasheet |
- | Tube | Active | General Purpose | 350µH | - | 1:1 | Surface Mount | - | 0.385" (9.77mm) | - | - | - |
|
H1259NLTXFRMR MODULE 4PORT 1:1 10/100 Pulse Electronics |
918 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | - | - | 1:1 | Surface Mount | 1.125" L x 0.480" W (28.58mm x 12.19mm) | 0.235" (5.97mm) | 0°C ~ 70°C | - | - |
|
|
TX1267NLXFRMR 4PORT 1:2 1.2MH SMD Pulse Electronics |
140 |
|
Datasheet |
- | Tube | Active | T1/E1 (Quad) | 1.2mH | - | 1:2 Transmitter, 1:1 Receiver | Surface Mount | 1.125" L x 0.485" W (28.58mm x 12.32mm) | 0.275" (6.99mm) | -40°C ~ 85°C | - | - |
|
H5020FNLTPULSE XFMR 1CT:1CT TX 1CT:1CT RX Pulse Electronics |
290 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 1.100" L x 0.395" W (27.94mm x 10.03mm) | 0.340" (8.64mm) | 0°C ~ 70°C | - | - |
|
|
TX1263NLTXFRMR 4PORT 1:2 1.2MH SMD Pulse Electronics |
559 |
|
Datasheet |
- | Tape & Reel (TR) | Active | T1/E1 (Quad) | 1.2mH | - | 1:2 Transmitter, 1:2 Receiver | Surface Mount | 1.125" L x 0.485" W (28.58mm x 12.32mm) | 0.275" (6.99mm) | -40°C ~ 85°C | - | - |
|

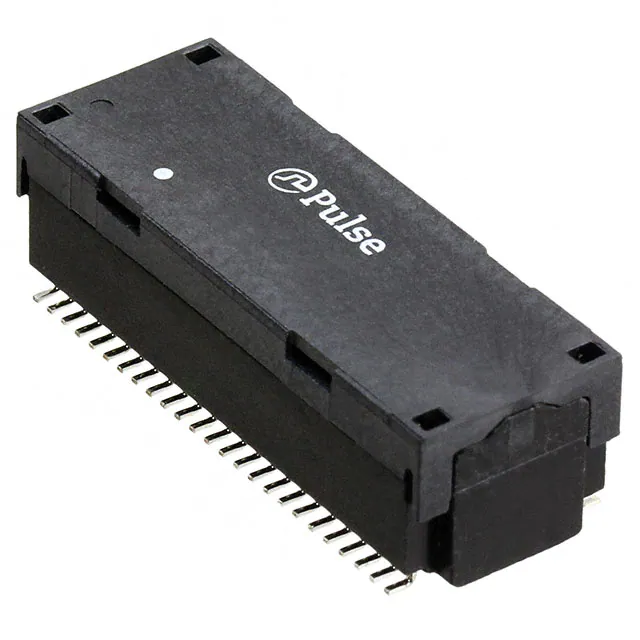

HX5020FNLPULSE XFMR 1 CT:1CT TX/RX 350UH Pulse Electronics |
367 |
|
Datasheet |
- | Tube | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 1.100" L x 0.395" W (27.94mm x 10.03mm) | 0.340" (8.64mm) | -40°C ~ 85°C | - | - |
|
|
T1176NLMODULE INTERFACE 1CT:2.4CT SMD Pulse Electronics |
726 |
|
Datasheet |
- | Tube | Active | T1/E1 (Dual) | 1.2mH | - | 1CT:2.4CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.690" L x 0.480" W (17.53mm x 12.20mm) | 0.227" (5.76mm) | -40°C ~ 85°C | - | - |
