Pulse Transformers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HX7137NLMDL SIN 10GD 1:1 SM CMS 18 Pulse Electronics |
126 |
|
Datasheet |
HX7137NL | Tube | Active | LAN 10 Base-T | 120µH | - | 1:1 | Surface Mount | 0.698" L x 0.480" W (17.73mm x 12.19mm) | 0.285" (7.24mm) | -40°C ~ 85°C | - | - |
|

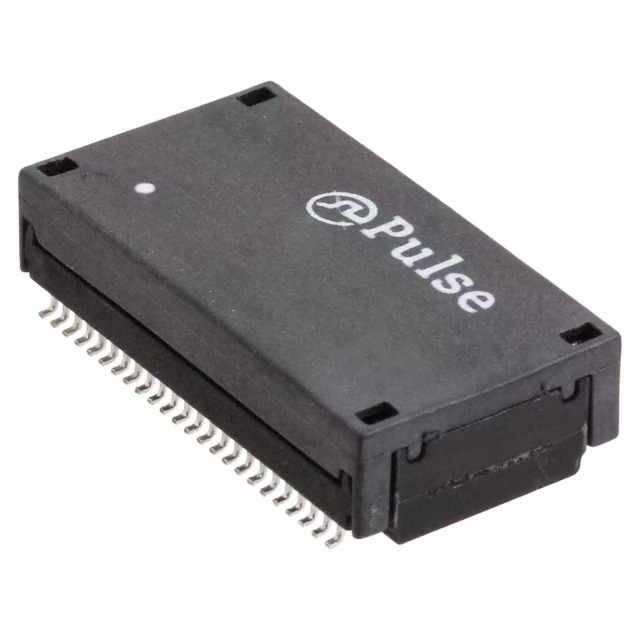

H5014FNLTPULSE XFMR 1CT:1CT TX 1CT:1CT RX Pulse Electronics |
316 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 1.095" L x 0.590" W (27.81mm x 14.99mm) | 0.285" (7.24mm) | 0°C ~ 70°C | - | - |
|

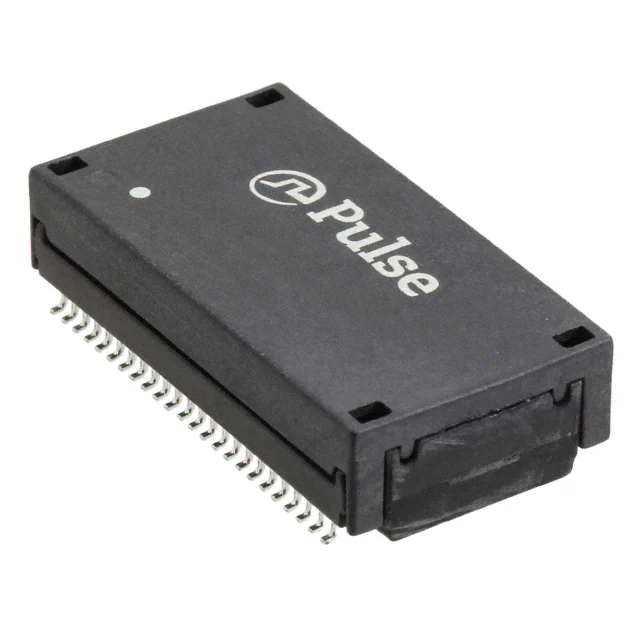

H5014FNLPULSE XFMR 1CT:1CT TX 1CT:1CT RX Pulse Electronics |
269 |
|
Datasheet |
- | Tube | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 1.095" L x 0.590" W (27.81mm x 14.99mm) | 0.285" (7.24mm) | 0°C ~ 70°C | - | - |
|
H5401NLMODULE XFORMR QUAD GIGABIT SMD Pulse Electronics |
220 |
|
Datasheet |
- | Tray | Active | - | - | - | 1CT:1CT | Surface Mount | 1.120" L x 0.680" W (28.45mm x 17.27mm) | 0.438" (11.12mm) | 0°C ~ 70°C | - | - |
|
PA1323NLPULSE XFMR 1:1 600UH Pulse Electronics |
1,340 |
|
Datasheet |
- | Tray | Active | - | 600µH | 21.7VµS | 1:1 | Surface Mount | 0.280" L x 0.375" W (7.11mm x 9.52mm) | 0.210" (5.33mm) | -40°C ~ 130°C | - | - |
|
PA0264NLPULSE XFMR 1:1:1 1.14MH Pulse Electronics |
1,510 |
|
Datasheet |
- | Tube | Active | - | 1.14mH | 17.2VµS | 1:1:1 | Surface Mount | 0.340" L x 0.265" W (8.64mm x 6.73mm) | 0.140" (3.56mm) | -40°C ~ 130°C | - | - |
|
PA2006NLPULSE XFMR 1:1 864UH Pulse Electronics |
1,670 |
|
Datasheet |
- | Tube | Active | - | 864µH | 26VµS | 1:1 | Surface Mount | 0.340" L x 0.460" W (8.64mm x 11.68mm) | 0.160" (4.06mm) | -40°C ~ 130°C | - | - |
.00xNL-Series.jpg)
|
PA3855.001NLPULSE XFMR 54UH Pulse Electronics |
770 |
|
Datasheet |
- | Tray | Active | - | 54µH | - | - | Surface Mount | 0.571" L x 0.695" W (14.50mm x 17.65mm) | 0.551" (14.00mm) | -40°C ~ 130°C | - | - |
|
|
PA3855.004NLPULSE XFMR 21UH Pulse Electronics |
770 |
|
Datasheet |
- | Tray | Active | - | 21µH | - | - | Surface Mount | 0.571" L x 0.695" W (14.50mm x 17.65mm) | 0.551" (14.00mm) | -40°C ~ 130°C | - | - |
|

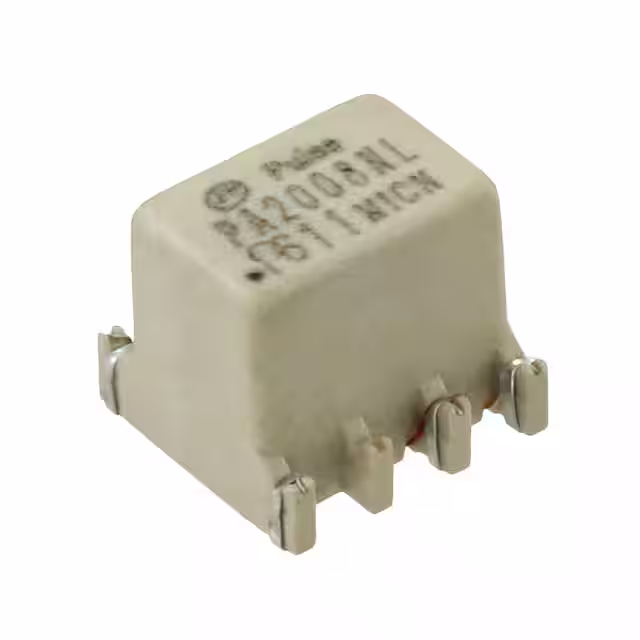

PA2008NLPULSE XFMR 2:1:1 1.43MH Pulse Electronics |
2,499 |
|
Datasheet |
- | Tube | Active | - | 1.43mH | 52VµS | 2:1:1 | Surface Mount | 0.355" L x 0.340" W (9.02mm x 8.64mm) | 0.300" (7.62mm) | -40°C ~ 130°C | - | - |
